US-assembled in Brooklyn
Built and commissioned at our Brooklyn facility, not drop-shipped from a container. You get a domestic point of contact for the life of the unit.
Balanced Security
Three-quarter height turnstiles, the middle ground
Taller than a tripod, shorter than a full-height. Strong physical deterrent without dominating the room. The right choice for back-of-house, gyms, transit mezzanines, and industrial entries.
~5ft barrier height30/min throughputIndoor + outdoor
Five-foot rotating barrier reads as serious access control without the visual heaviness of a full-height cage.
1.70m
Max Height
90%+
Security Coverage
20-35%
Less Than Full-Height
5yr
Warranty
Indicative pricingStarting from ~$5,000 per lanehardware only · install adds $2,000–$8,000 per lane
Features
Why facilities choose our three-quarter turnstiles
Anti-Climb Design
Height and rotor configuration deter climbing attempts, providing significantly higher security than waist-high turnstiles without full-height bulk.
Outdoor Rated
Weather-sealed electronics, stainless steel construction, and corrosion-resistant components handle rain, snow, heat, and humidity year-round.
Welcoming Appearance
Less imposing than full-height enclosures, three-quarter turnstiles maintain a professional, approachable feel for visitors and guests.
Cost-Effective Security
20-35% less expensive than full-height turnstiles while handling 90%+ of security scenarios. Maximum value for your access control budget.
Universal Integration
Works with all major access control systems. Supports RFID, mobile credentials, barcode/QR tickets, and biometric readers.
Configurable Height
Available from 1.50m to 1.70m. Choose the height that matches your security requirements and site aesthetics.
See it in motion
Waist-high rotor, controlled entry
Three-quarter-height rotors balance deterrence and openness for semi-public entrances. Shown here as a motion visualization built from our product renders, not footage of a specific site.
Certified & warranted
- ISO 9001quality-managed manufacturing
- UL-listed componentskey electrical parts
- ADA 2010 §404accessible lane options
- IP54 – IP65sealed for indoor & outdoor duty
- 5-year warrantymotors, electronics & metalwork
Works with your access control
The barrier is credential- and panel-agnostic: it takes the signal from the reader and controller you already run. Compatible with the major platforms by design.
- HID
- LenelS2
- Genetec
- Brivo
- AMAG
- + all major ACS
Via standard Wiegand, OSDP, RS-485 & dry-contact interfaces.
Trusted by industry leaders
Where it deploys
Built for the room it lands in
Renders and deployment visualizations across the environments this line is built for, not photos of specific customer sites. Scroll to rotate the ring. Ask us for real reference projects on a call.

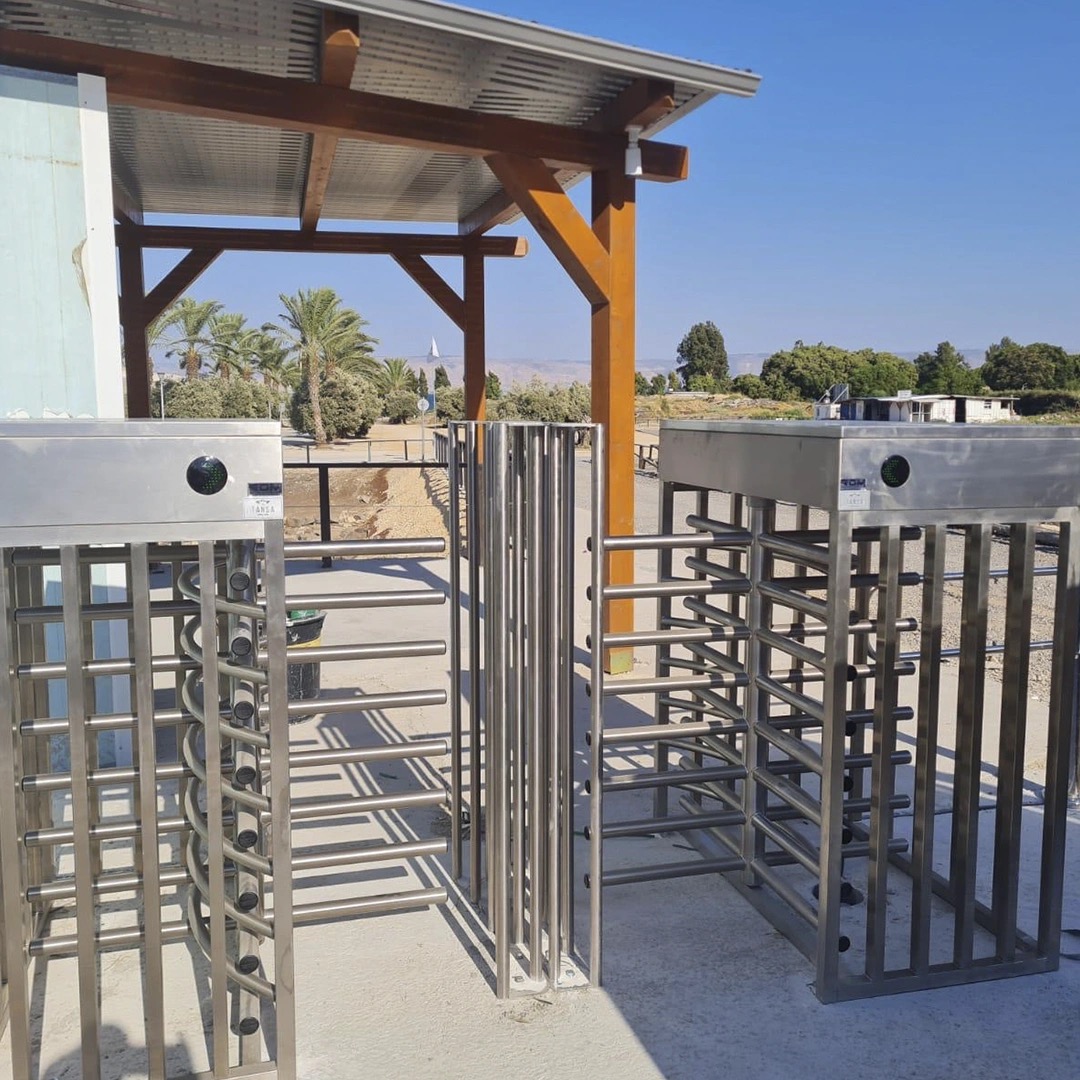

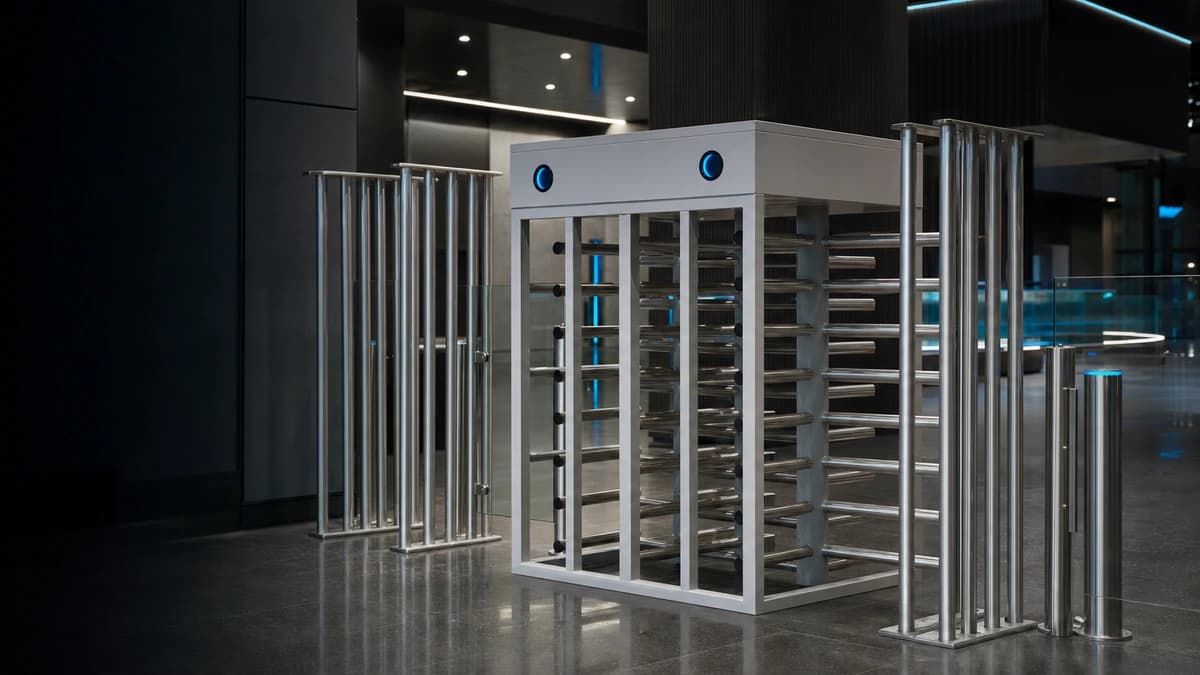

Recreation center entry
Recreation

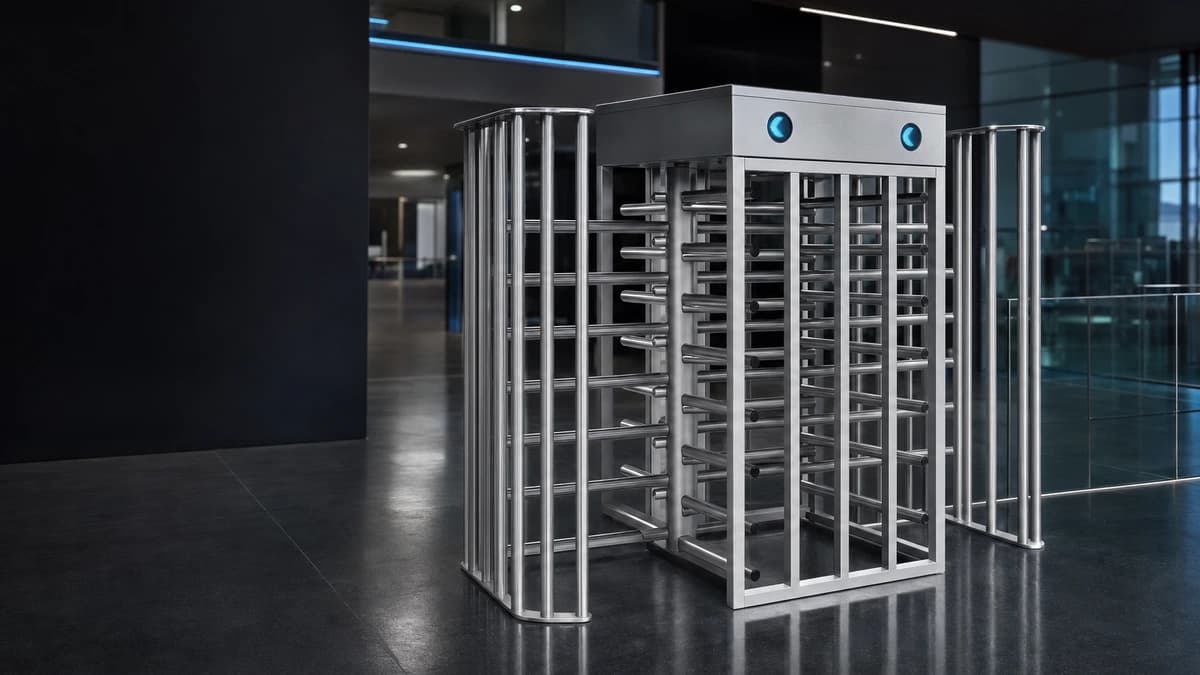

Stadium employee gate
Venues

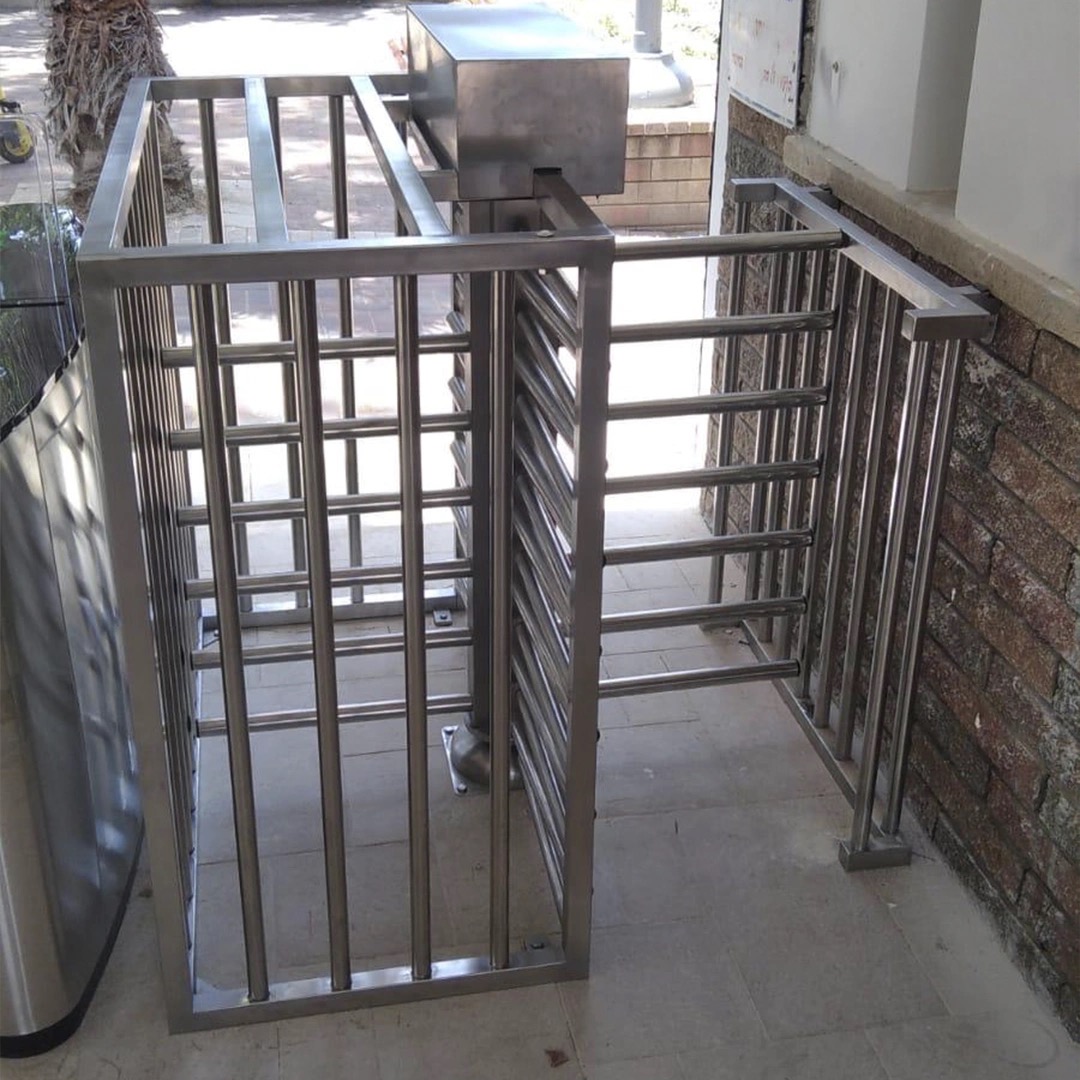

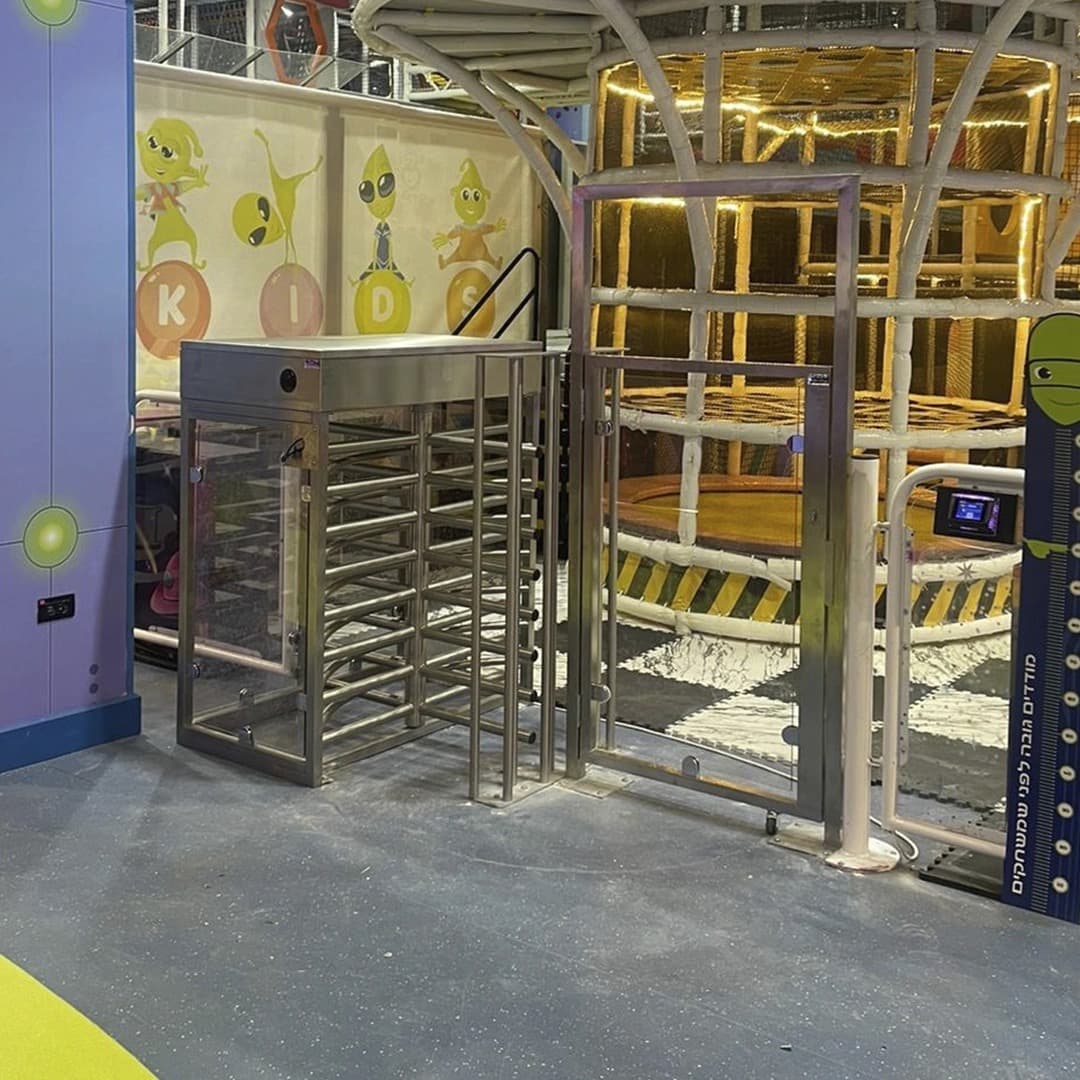

Transit mezzanine
Transit

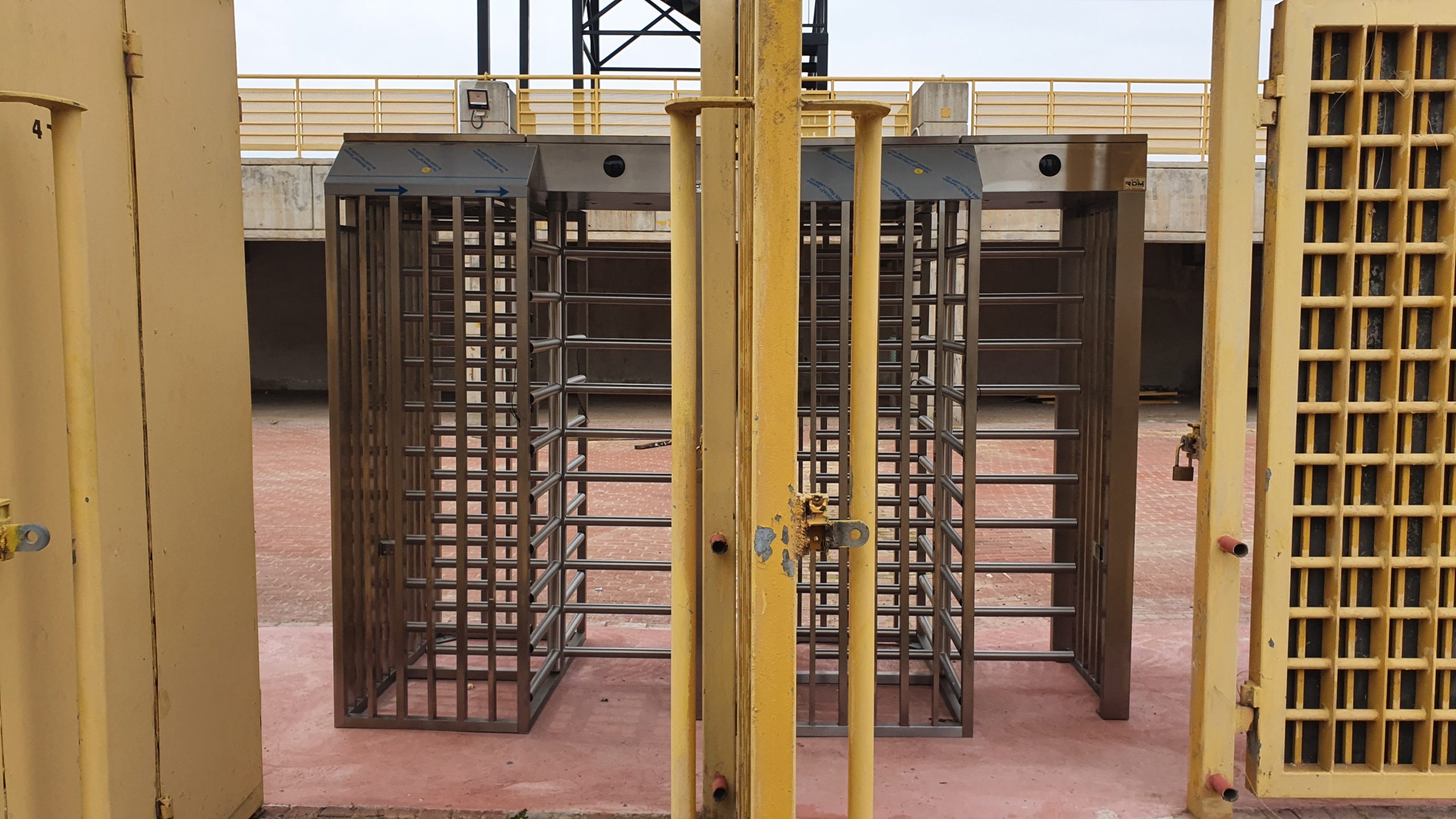

Industrial back-of-house
Industrial

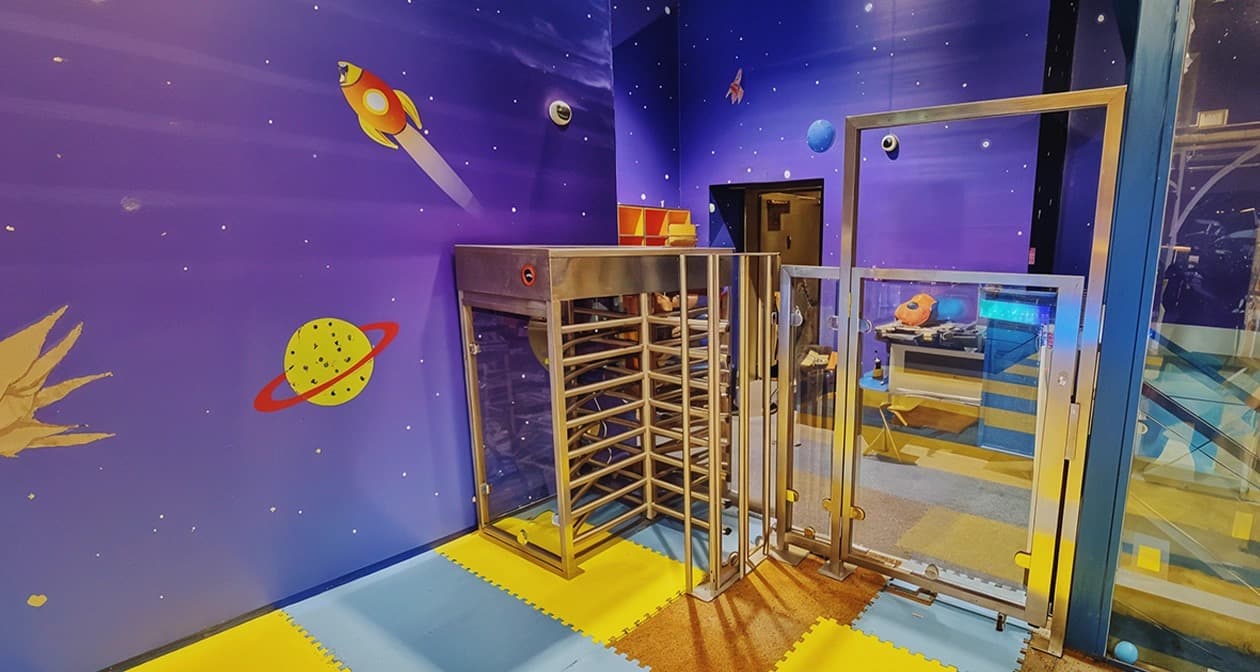

Studio profile
Full unit

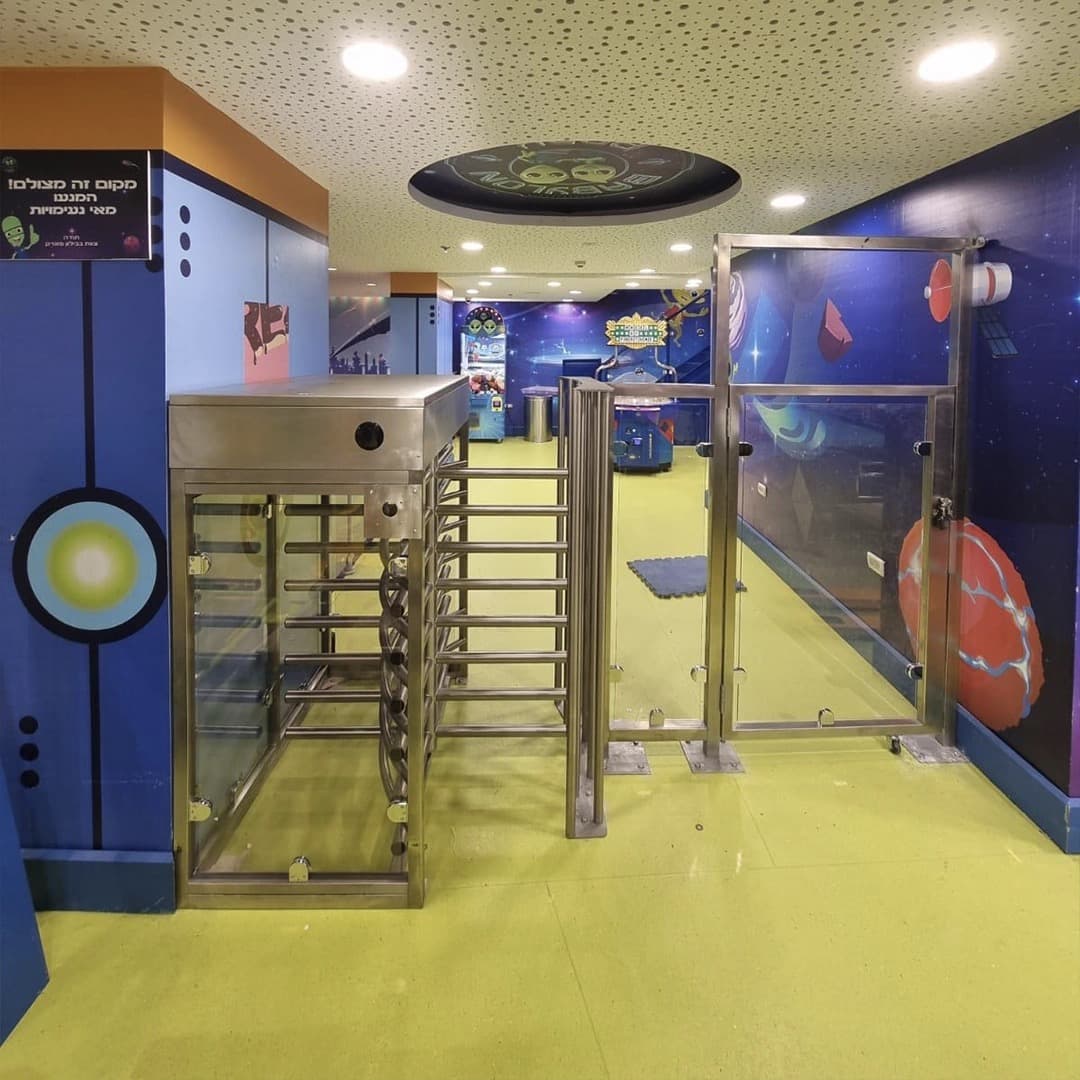

Rotor & housing detail
Detail
Specifications
Technical details
dimensions
- Height
- 1.50-1.70m / 59-67"
- Passage Width
- 24" / 610mm
- Rotor Diameter
- 21" / 535mm
- Construction
- Stainless steel
performance
- Power
- 24V DC
- Rotation
- Controlled
- Operating Temp
- -20°C to +55°C
- Weather Rating
- Outdoor rated
security
- Anti-Climb
- Yes
- Barrier Height
- 1.50-1.70m
- Tamper Detection
- Standard
- Emergency
- Fail-safe/secure
integration
- Protocols
- Wiegand, OSDP, RS-485
- Readers
- RFID / QR / Biometric
- Inputs
- 4 programmable
- Ticketing
- Barcode/QR scanner
Owning it after the install
The part most brands go quiet about
Serviceability, spare-parts speed, and who actually answers the phone decide your year-five maintenance budget more than the spec sheet does. Here is how buying manufacturer-direct changes it.
Same-day US parts
Spare motors, boards, sensors and seals ship same-day from Brooklyn inventory: no customs hold, no import-parts risk when a European supply line goes dark.
Serviceable by design
Front-access panels and modular drives mean a tech reaches the controls without dismantling the whole lane. Standard hand tools, documented procedures.
A direct engineer in 24h
Manufacturer-direct support with no distributor layer. The people who build and program the hardware answer integration and service calls, typically within 24 hours.
Balanced security, answered
Three-quarter turnstile FAQs
A three-quarter turnstile stands 1.50-1.70m (59-67 inches) tall, taller than waist-high tripod turnstiles but shorter than full-height models (2.1m+). They provide significantly better security than waist-high units with anti-climb features, while maintaining a less imposing appearance. Ideal for venues where security matters but a fortress-like aesthetic is undesirable.
Yes. The Gatestile LTF 104 D is fully outdoor rated with stainless steel construction, weather-sealed electronics, and corrosion-resistant components. It performs reliably in rain, snow, heat, and humidity at parks, stadiums, transit stations, and sports facilities.
Three-quarter turnstiles offer strong security with anti-climb design features that deter the vast majority of unauthorized entry attempts. While full-height turnstiles provide maximum physical security, three-quarter models handle 90%+ of security scenarios effectively at 20-35% lower cost.
Ready for the smart middle ground?
Get detailed pricing for your three-quarter turnstile project within 24 hours. Custom height configurations and integration recommendations included.
25+Years Manufacturing
53Models
3–8 wkLead Time
5-YearWarranty
No commitment · 24hr response · (929) 814-2966
