US-assembled in Brooklyn
Built and commissioned at our Brooklyn facility, not drop-shipped from a container. You get a domestic point of contact for the life of the unit.
Maximum Security
Full-height turnstiles for hardened perimeters
Floor-to-ceiling steel barriers that physically prevent unauthorized passage. The standard for utilities, data centers, transit hubs, and federal sites.
Anti-climb constructionIP54 outdoor rated5-year warranty
A 7-foot rotating barrier with anti-climb spacing, no gap to crawl under, and reinforced steel construction rated for outdoor exposure.
20+
Models Available
IP65
Logic Controller
12W
Standby Power
5yr
Warranty
Indicative pricingStarting from ~$7,000 per lanehardware only · install adds $2,000–$8,000 per lane
Features
Why facilities choose our full-height turnstiles
Anti-Climb, Anti-Tailgate
Floor-to-ceiling barrier eliminates climbing over, crawling under, and tailgating. Single-person passage enforced by rotor geometry and locking mechanism.
Outdoor-Rated IP65 Logic
IP54 cabinet with IP65 logic controller rated for -10°C to +70°C. Optional heating kits and canopies for extreme weather conditions.
12W Standby Power
Ultra-low power consumption with fail-safe operation. Optional battery backup ensures continued operation during power outages.
7 Flagship Models, 20+ Configurations
Seven most-specified models across our LFT and Maxima series (manual or motor-driven, glass-faced or fully fortified) within a 20+ model range that's customizable in finish, drive, and integration.
Universal Integration

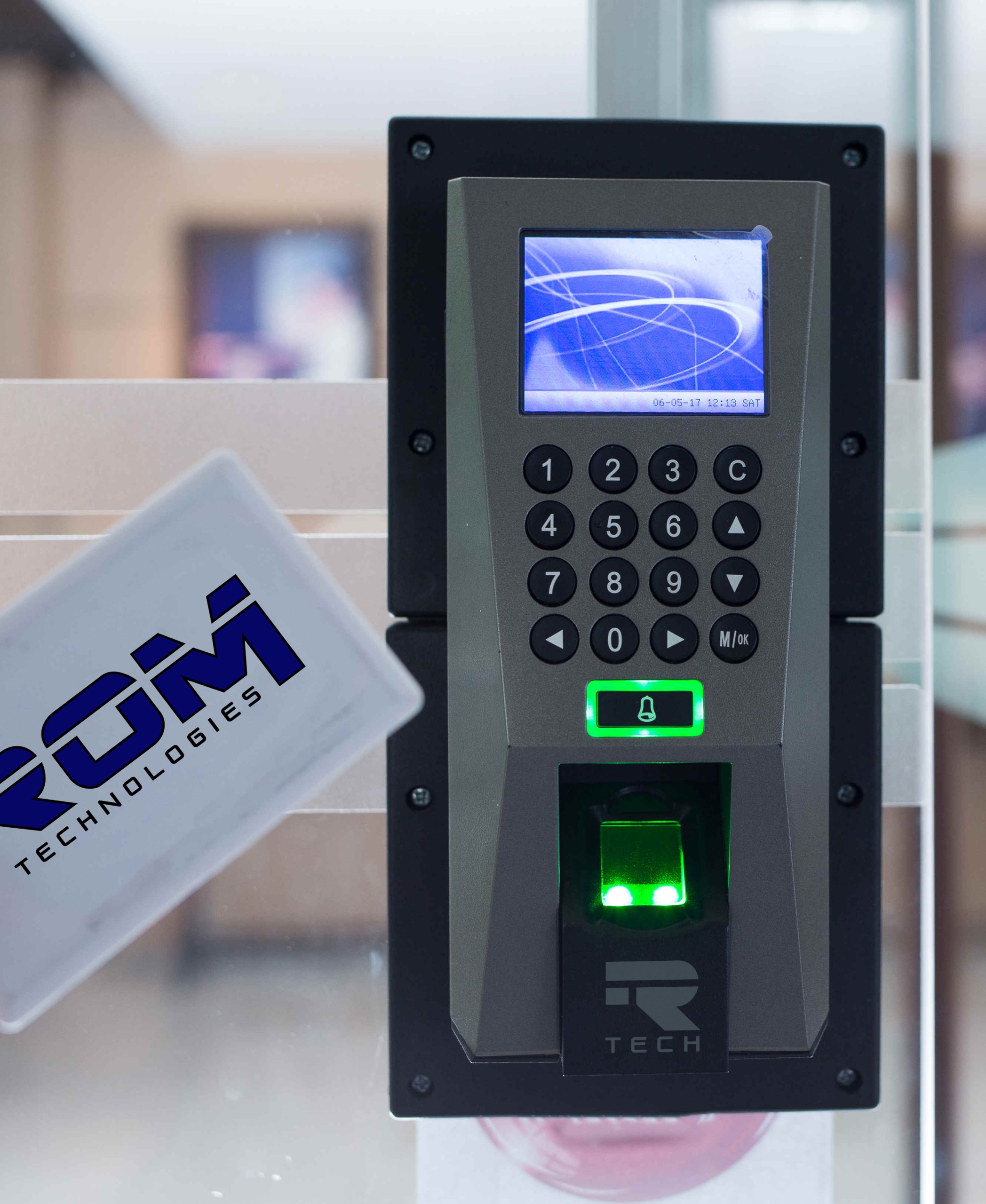

RS232 communication with 255-release storage buffer. Supports RFID, biometrics, PIN, and mobile credentials with all major access control systems.
AISI 304/316 Stainless Steel
Heavy-gauge stainless steel construction resists corrosion, vandalism, and UV exposure. Built for 20+ years of continuous outdoor service.
See it in motion
The rotor turns, locked to your reader
A full-height rotor that only turns on a valid credential, rated for outdoor perimeters. Shown here as a motion visualization built from our product renders, not footage of a specific site.
Certified & warranted
- ISO 9001quality-managed manufacturing
- UL-listed componentskey electrical parts
- ADA 2010 §404accessible lane options
- IP54 – IP65sealed for indoor & outdoor duty
- 5-year warrantymotors, electronics & metalwork
Works with your access control
The barrier is credential- and panel-agnostic: it takes the signal from the reader and controller you already run. Compatible with the major platforms by design.
- HID
- LenelS2
- Genetec
- Brivo
- AMAG
- + all major ACS
Via standard Wiegand, OSDP, RS-485 & dry-contact interfaces.
The lineup
Seven full-height models, one platform
Our most-specified full-height configurations, every one built on the same hardened control platform. Single or two-lane, open-frame or fortified, they're the popular starting points within a range of 20+ models, each customizable in finish, drive, and integration.
Most specified

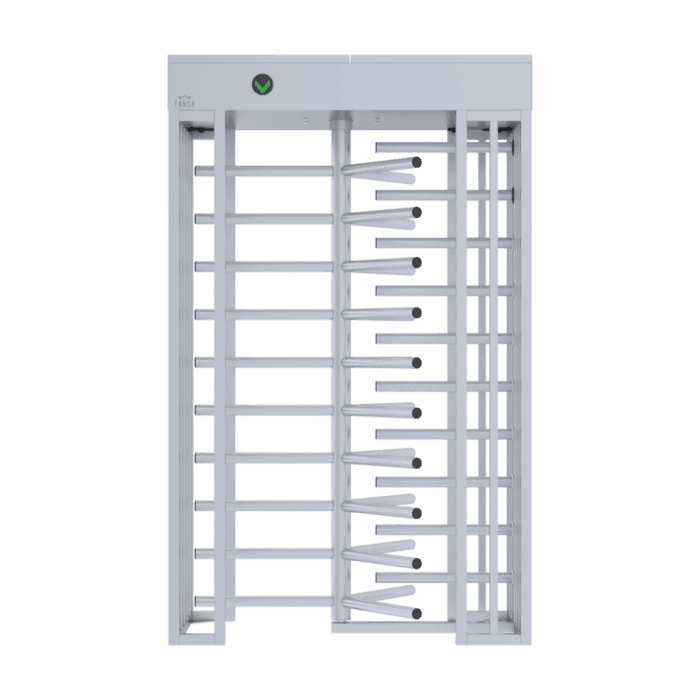

Sentry
LFT 113Single-lane3-sectionStandard frame
The essential single-lane full-height turnstile.

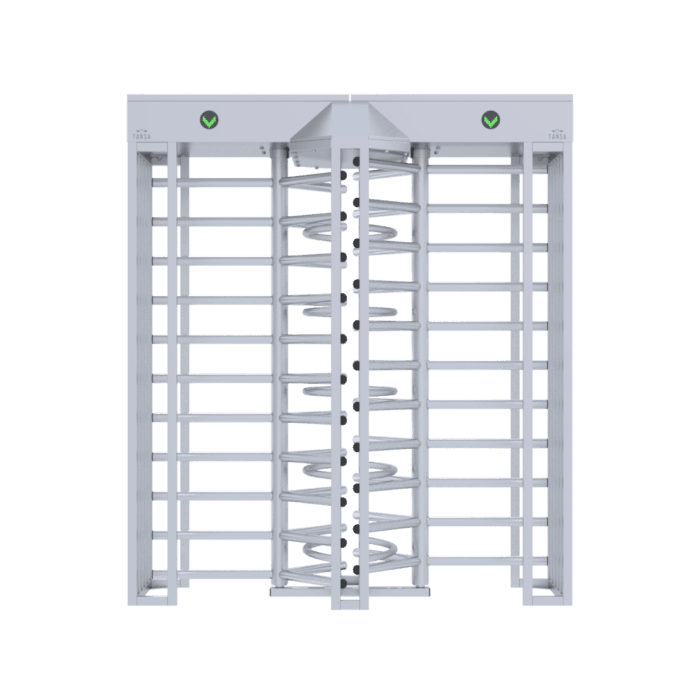

Sentry Duo
LFT 113DTwo-lane3-sectionStandard frame
Two Sentry lanes in one shared frame.

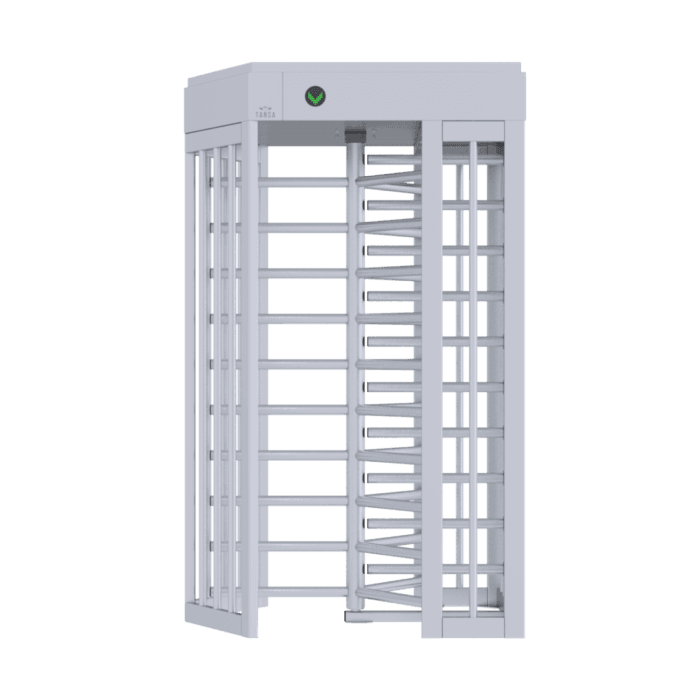

Guardian
LFT 413Single-lane3-sectionAlternate frame
Same protection, a different frame architecture.

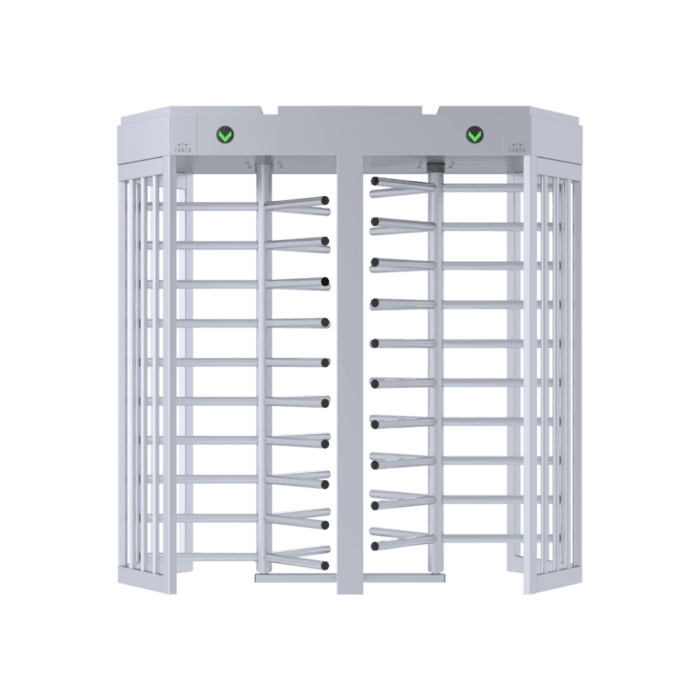

Guardian Duo
LFT 413DTwo-lane3-sectionAlternate frame
The two-lane build of the Guardian frame.

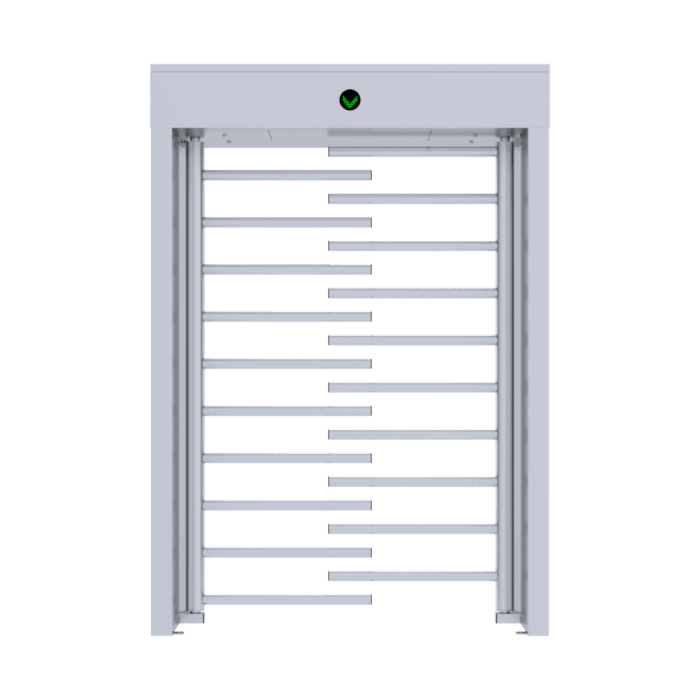

Vista
LFT 413SGSingle-lane2-sectionOpen frame
Open-frame full-height security with clean sightlines.
Most specified

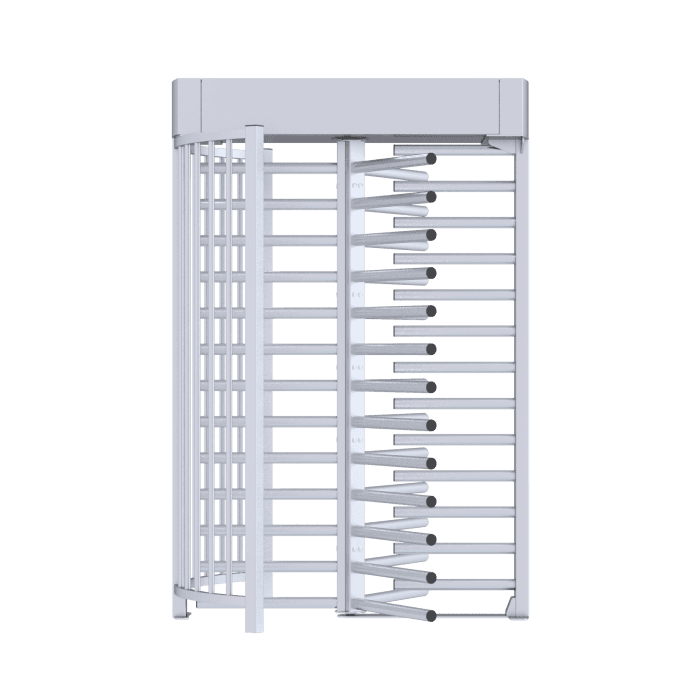

Meridian
MR-T 670-630-600Single-laneMaxima premium
The Maxima flagship, engineered and documented.

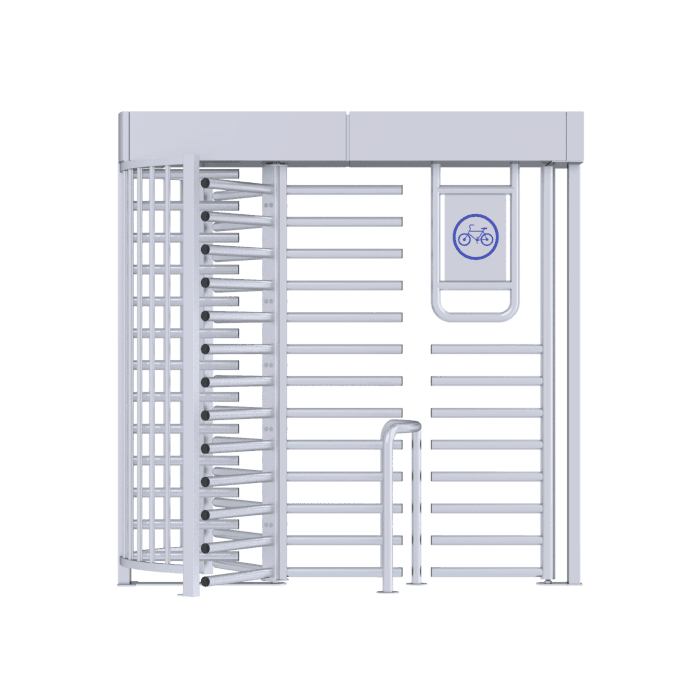

Bastion
MB-T 630Single-laneMaximaHeaviest build
The most fortified barrier in the lineup.
Trusted by industry leaders
Where it deploys
Built for the room it lands in
Renders and deployment visualizations across the environments this line is built for, not photos of specific customer sites. Scroll to rotate the ring. Ask us for real reference projects on a call.

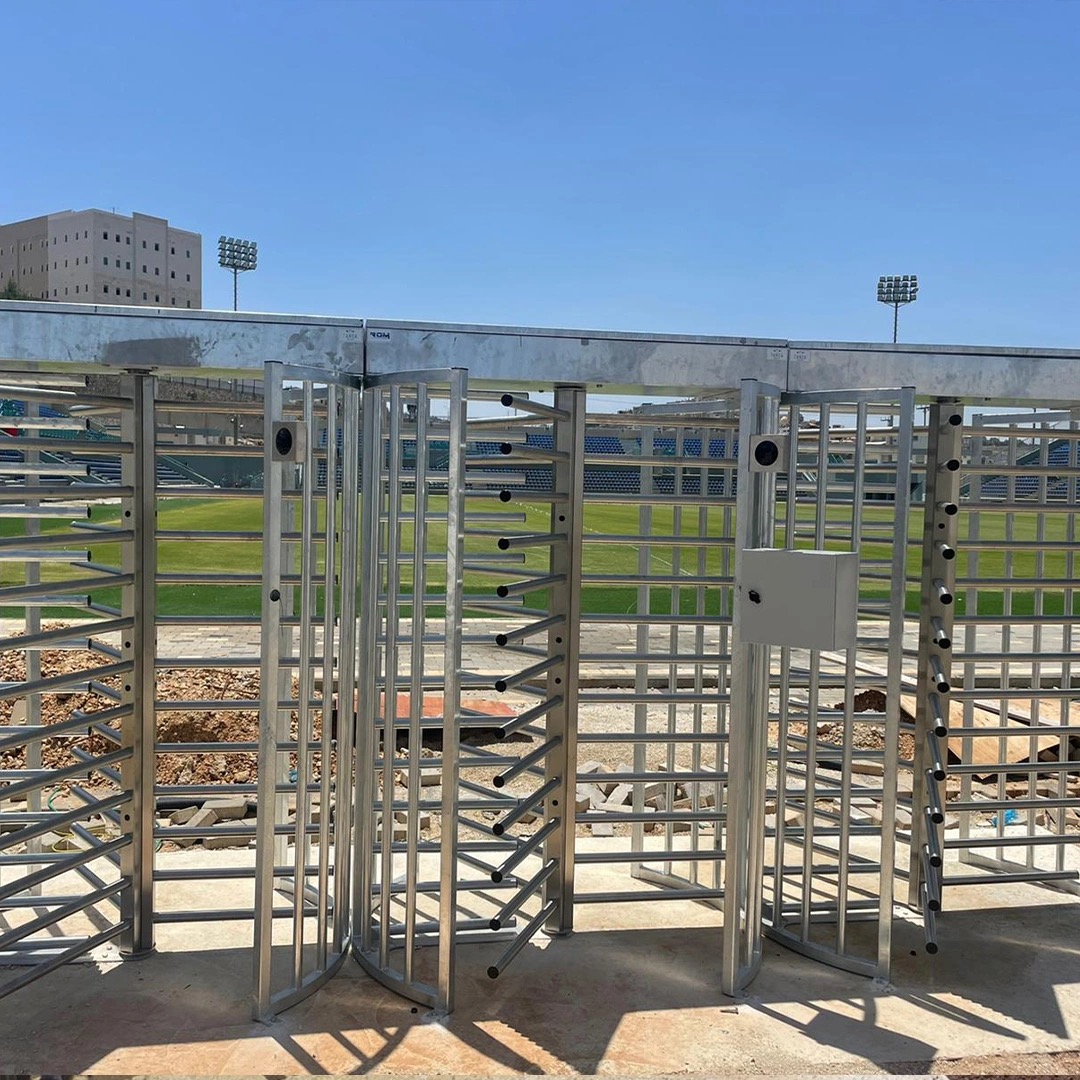

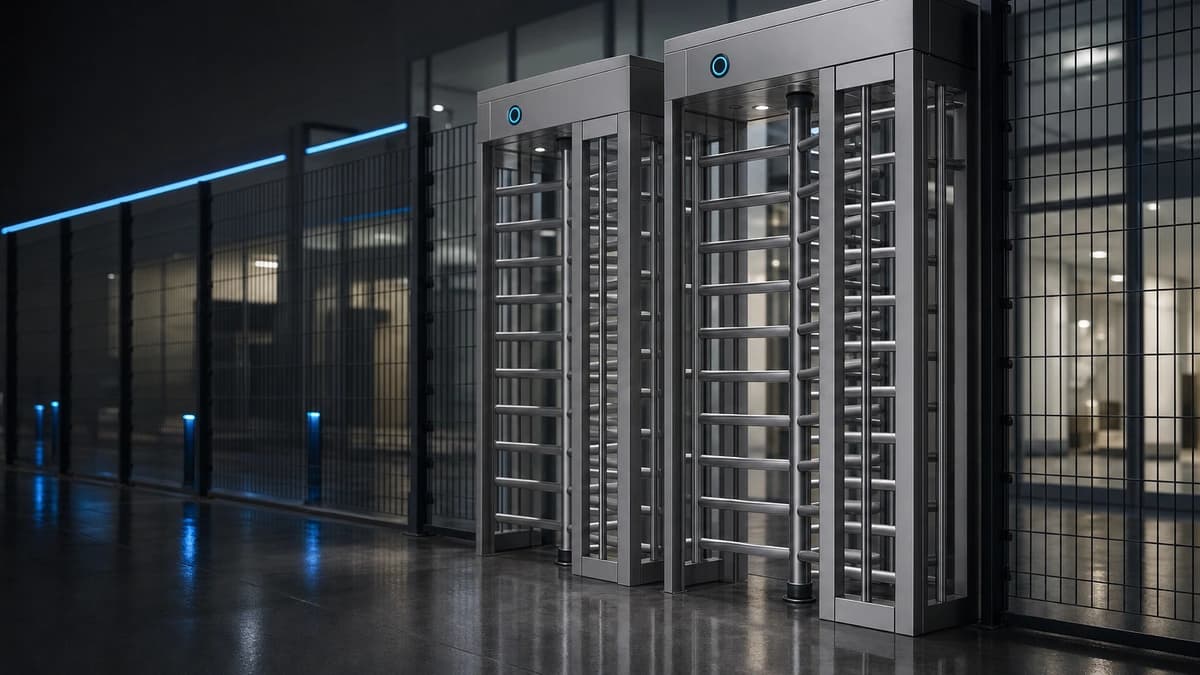

Industrial perimeter
Perimeter security

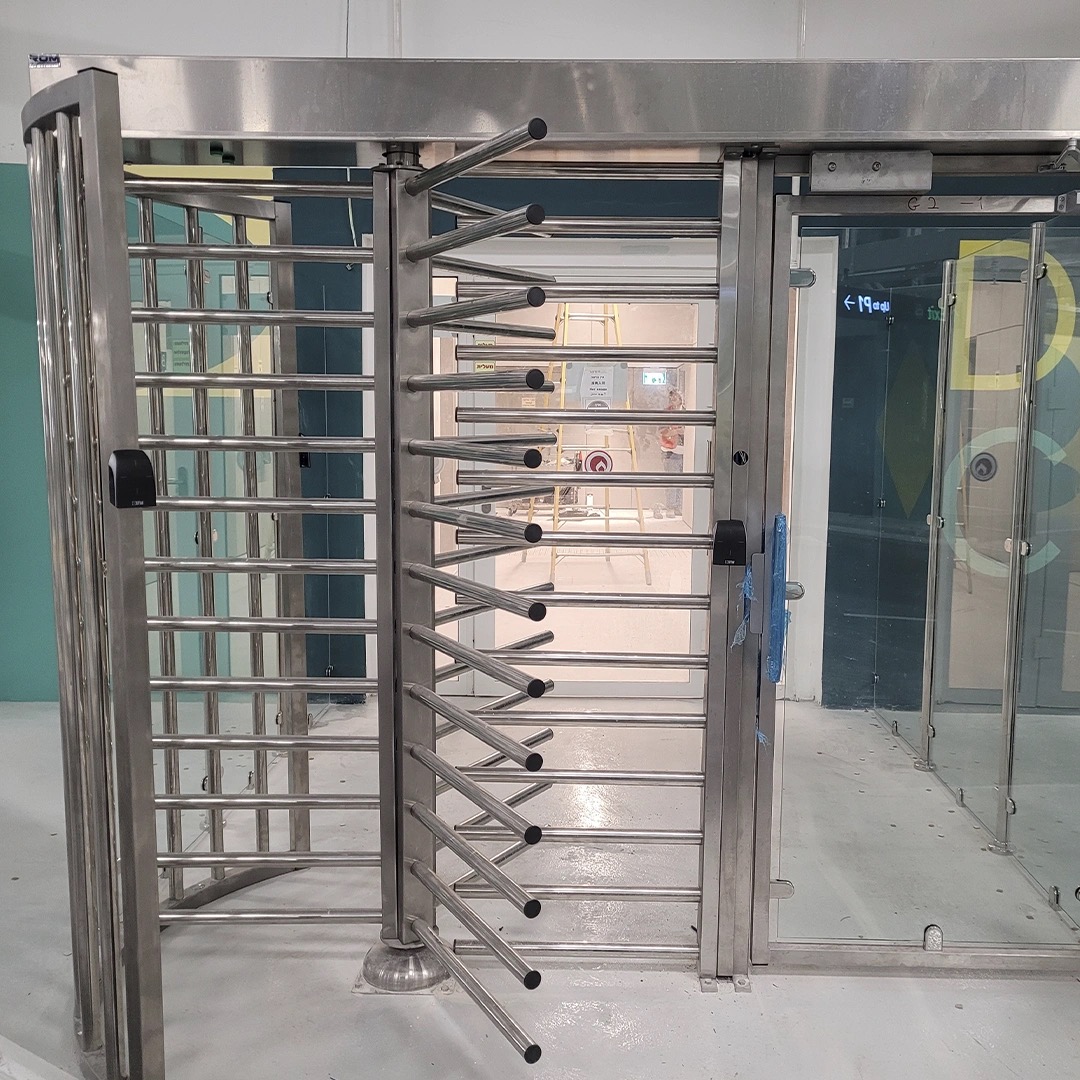

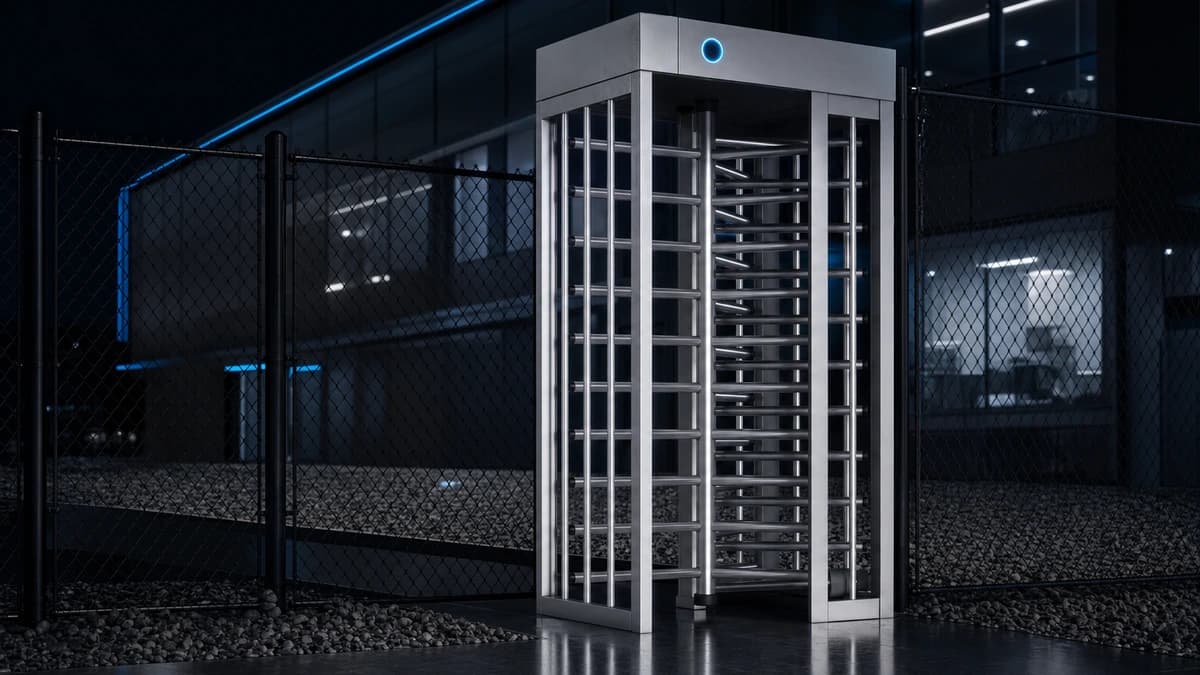

Utility substation
Critical infrastructure

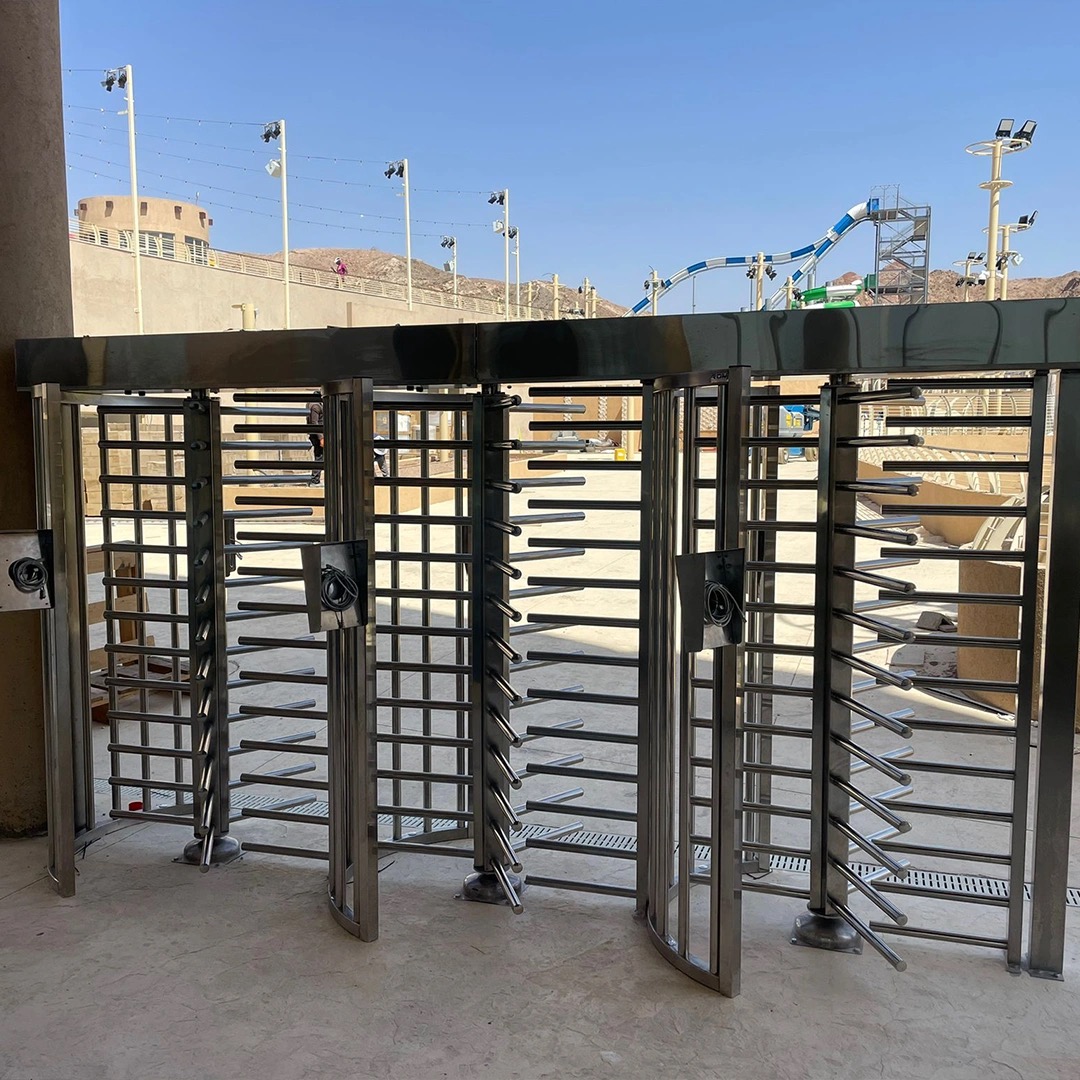

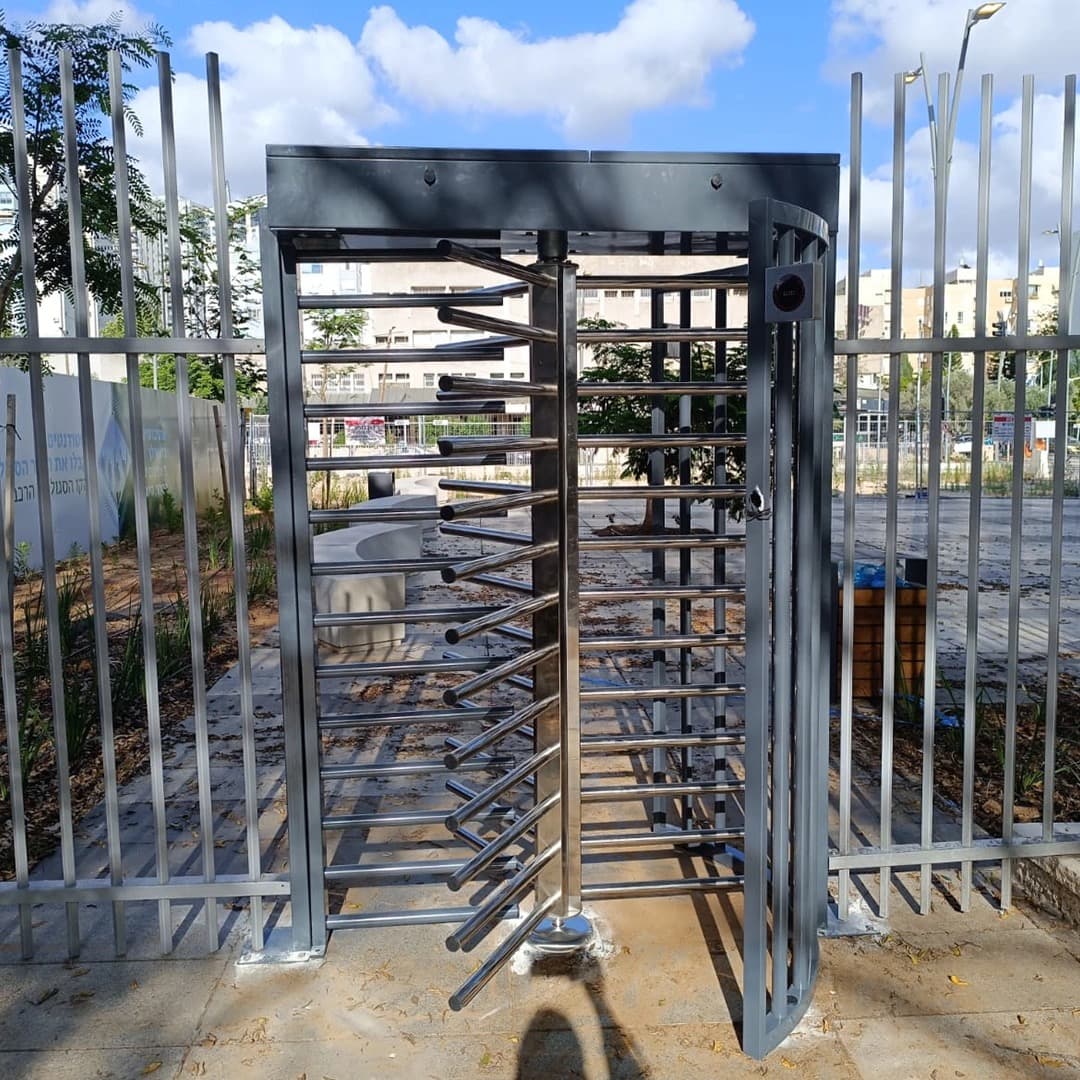

Data center yard
Data center

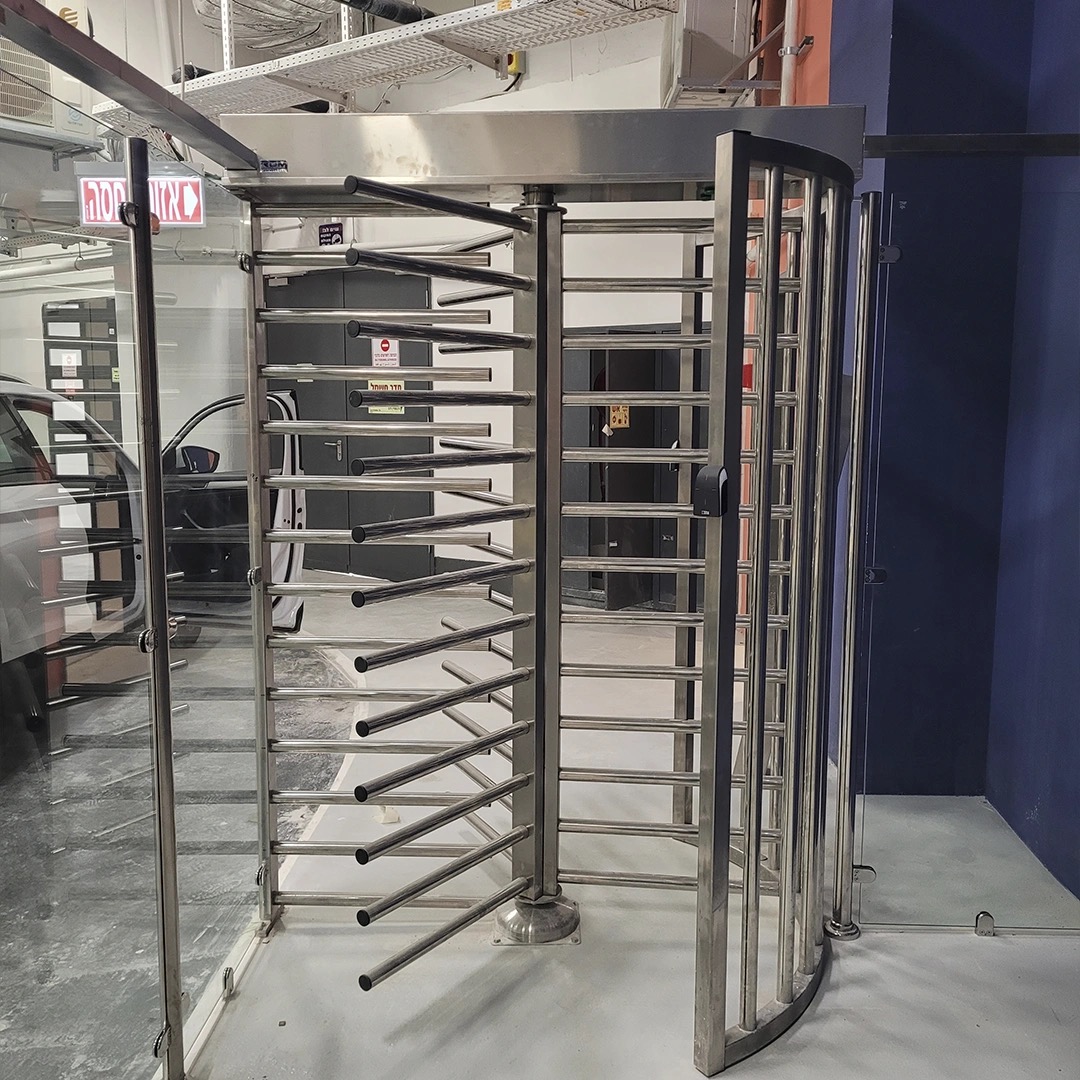

Logistics & port gate
Logistics

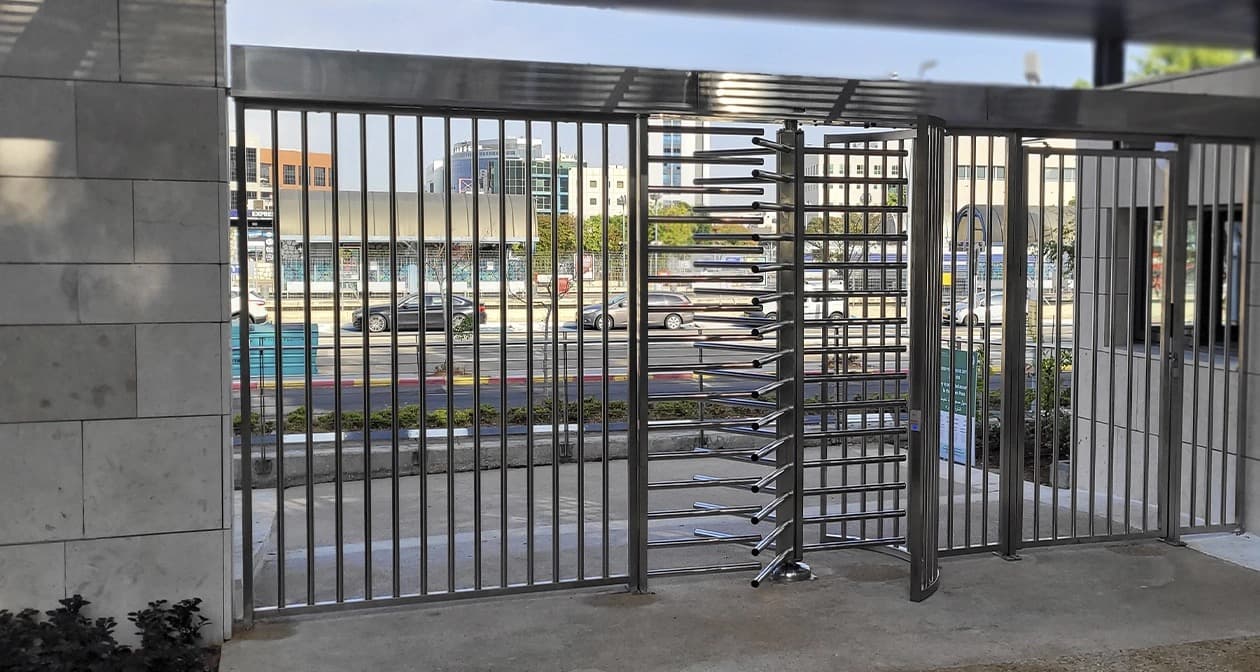

Studio profile
Full unit

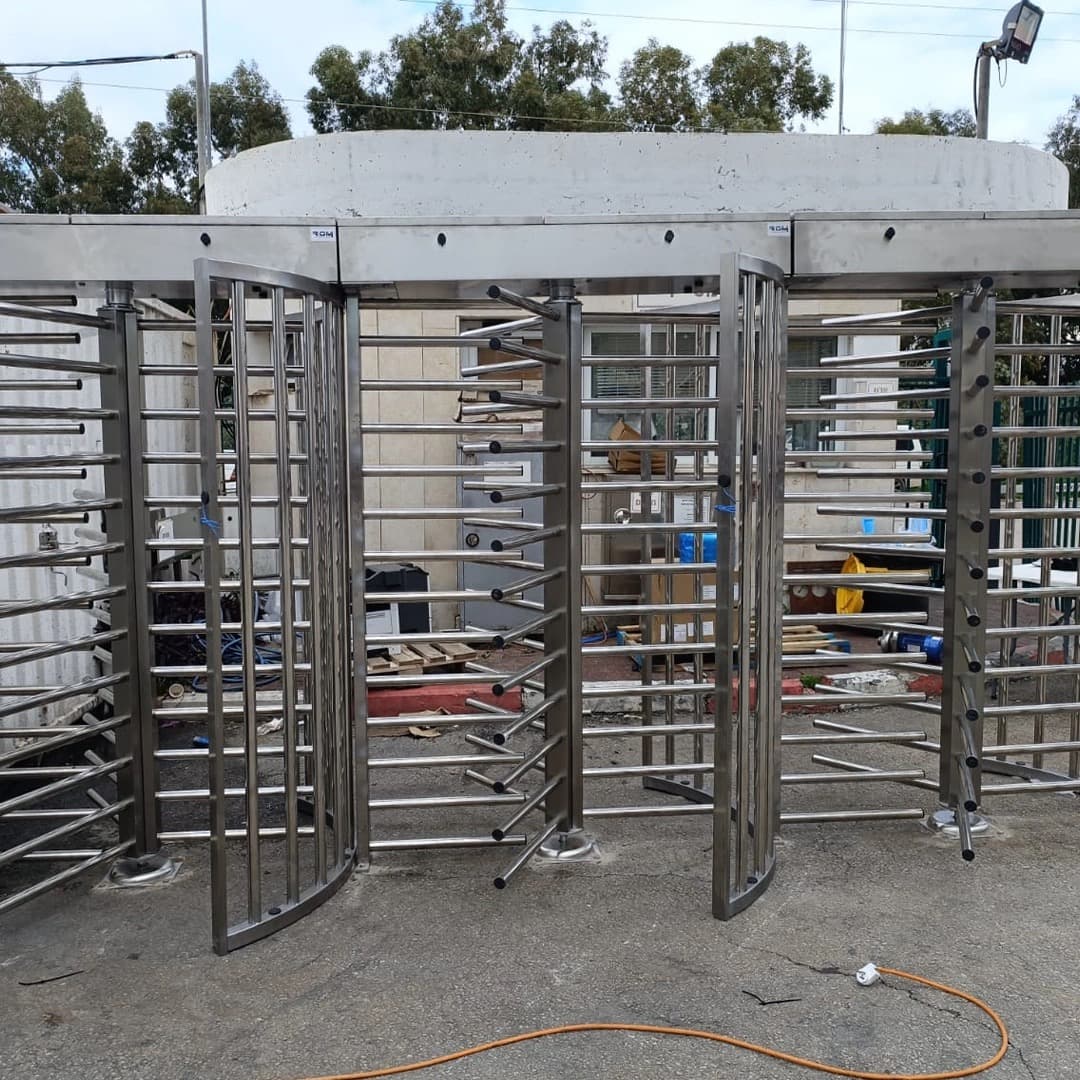

Rotor & frame detail
Detail
Specifications
One platform, every model
Every model in the lineup shares the same hardened control platform: the specs below apply across the range.
dimensions
- Passage Width
- 670 / 630 / 600 mm
- Weight
- 290–320 kg
- Rotor
- 4-part · 90° division
- Crossbars
- 13 × Ø51 mm
power
- Supply
- 100–240 VAC, 50/60 Hz
- Logic Voltage
- 24 VDC
- Standby Power
- 12 W
- Operating Temp
- −10°C to +70°C
protection
- Cabinet IP
- IP54
- Logic IP
- IP65
- Anti-Climb
- Full-height barrier
- Emergency
- Fail-safe unlock
integration
- Communication
- RS-232
- Release Storage
- 255 entries
- Readers
- RFID, Biometric, PIN
- Direction
- Uni / Bi-directional
Owning it after the install
The part most brands go quiet about
Serviceability, spare-parts speed, and who actually answers the phone decide your year-five maintenance budget more than the spec sheet does. Here is how buying manufacturer-direct changes it.
Same-day US parts
Spare motors, boards, sensors and seals ship same-day from Brooklyn inventory: no customs hold, no import-parts risk when a European supply line goes dark.
Serviceable by design
Front-access panels and modular drives mean a tech reaches the controls without dismantling the whole lane. Standard hand tools, documented procedures.
A direct engineer in 24h
Manufacturer-direct support with no distributor layer. The people who build and program the hardware answer integration and service calls, typically within 24 hours.
Maximum security, answered
Full-height turnstile FAQs
A full-height turnstile is a floor-to-ceiling rotating barrier (typically 7 feet / 2.1 meters tall) that completely encloses the passage zone. Unlike tripod turnstiles or speed gates, full-height turnstiles eliminate the possibility of climbing over or crawling under. They provide the highest level of unmanned security and are the standard choice for outdoor perimeters, construction sites, and high-security facilities.
Yes. All Gatestile full-height turnstiles feature an IP54-rated cabinet and an IP65-rated logic controller, making them fully suitable for outdoor installation. The AISI 304/316 stainless steel construction resists corrosion, UV exposure, and harsh weather. Optional heating kits and canopies are available for extreme climates.
We feature seven most-specified full-height models (Sentry, Sentry Duo, Guardian, Guardian Duo, Vista, Meridian, and Bastion) within a broader range of 20+ configurations across the LFT and Maxima series. Each is available single-direction or bi-directional.
Ready to secure your perimeter?
Get detailed pricing for your full-height turnstile project within 24 hours. Custom configurations, site assessment, and integration recommendations included.
25+Years Manufacturing
53Models
3–8 wkLead Time
5-YearWarranty
No commitment · 24hr response · (929) 814-2966
