Speed gates, assembled in Brooklyn
Premium optical turnstiles with tailgate detection, sub-second response, and glass barrier design. Manufacturer-direct pricing, typically 15–25% under comparable premium brands.
Features
Why facilities choose our speed gates
~60/min Throughput
High passage rates ease lobby bottlenecks. Wing or retractable barriers open and close in 0.5–1.5 seconds with configurable timing.
Up to 24 Optical Sensors
Our Vision flagship carries up to 24 optical safety sensors to detect and prevent unauthorized follow-through, with configurable alarm and barrier responses.
ADA-Ready Wide Lanes
Accessible 900–915mm lane options for wheelchairs, carts, and luggage, with appropriate timing and low-force operation.
Three Series, Seven Models
Century elliptical, Loop swing-glass, and premium Vision lines: hidden-barrier or swing-wing, standard or high-glass, in stainless, glass, or bespoke finishes.
Universal Integration
RS-485, RS-232, CAN bus, and TCP/IP. Works with all major access control systems: RFID, mobile credentials, and biometrics.
10mm Tempered Glass
Premium 10mm tempered glass barriers and tops on an AISI 304 stainless or galvanized steel chassis, built for continuous high-traffic duty.
The lineup
Seven speed gates across three series
From the classic elliptical Cadence to the slim, economical Glide and the architectural Lumen flagship. Choose the barrier style, lane width, and finish that fit your lobby. Every model shares the same fast, quiet, sensor-guarded platform.

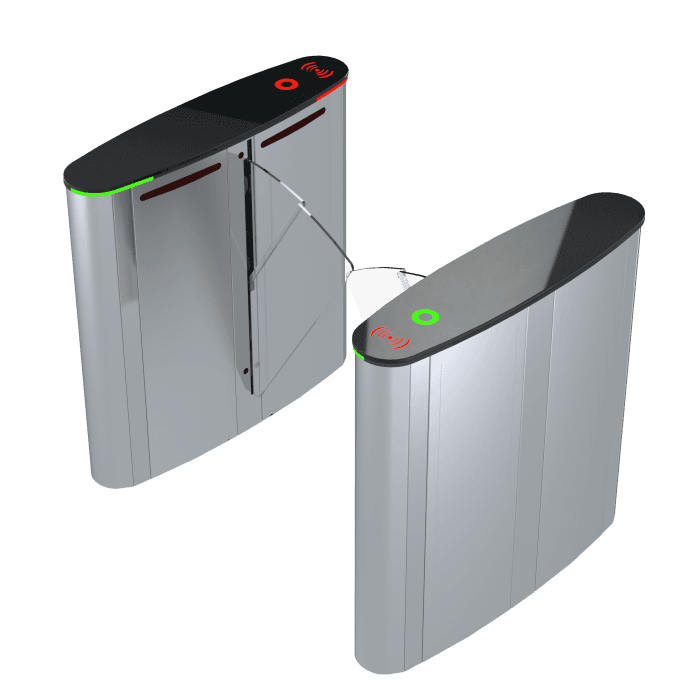

Cadence
Century 100/105Classic elliptical speed gate with a hidden barrier.

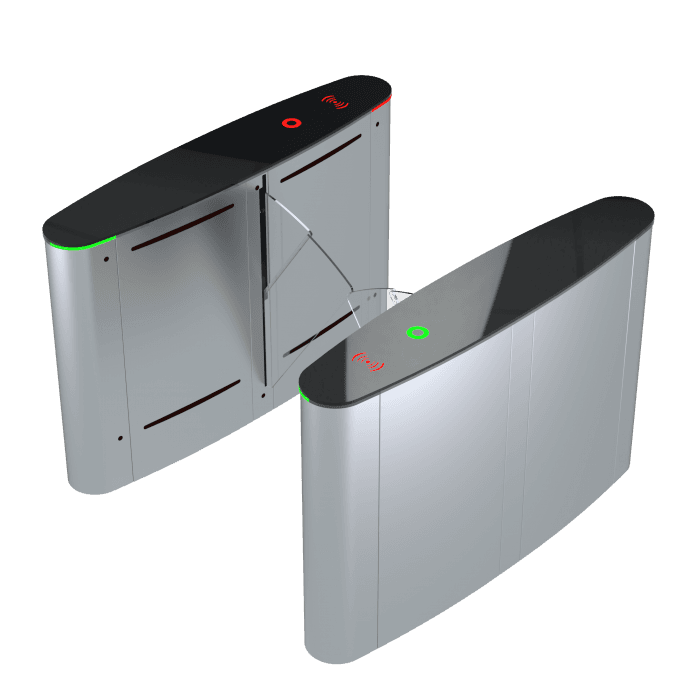

Cadence H
Century 116/116HThe 116-series Century with optional barrier wings.

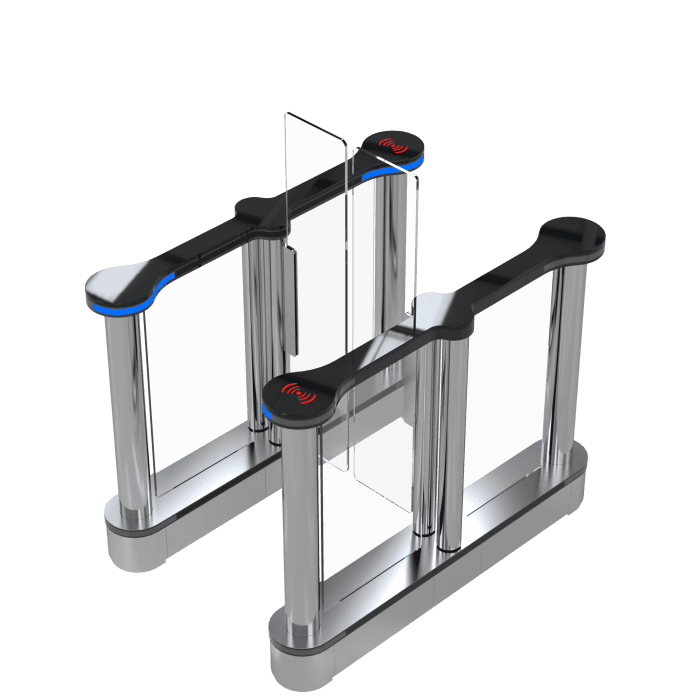

Glide
Loop LS 135/135HSlim, economical swing-glass for high-traffic flow.

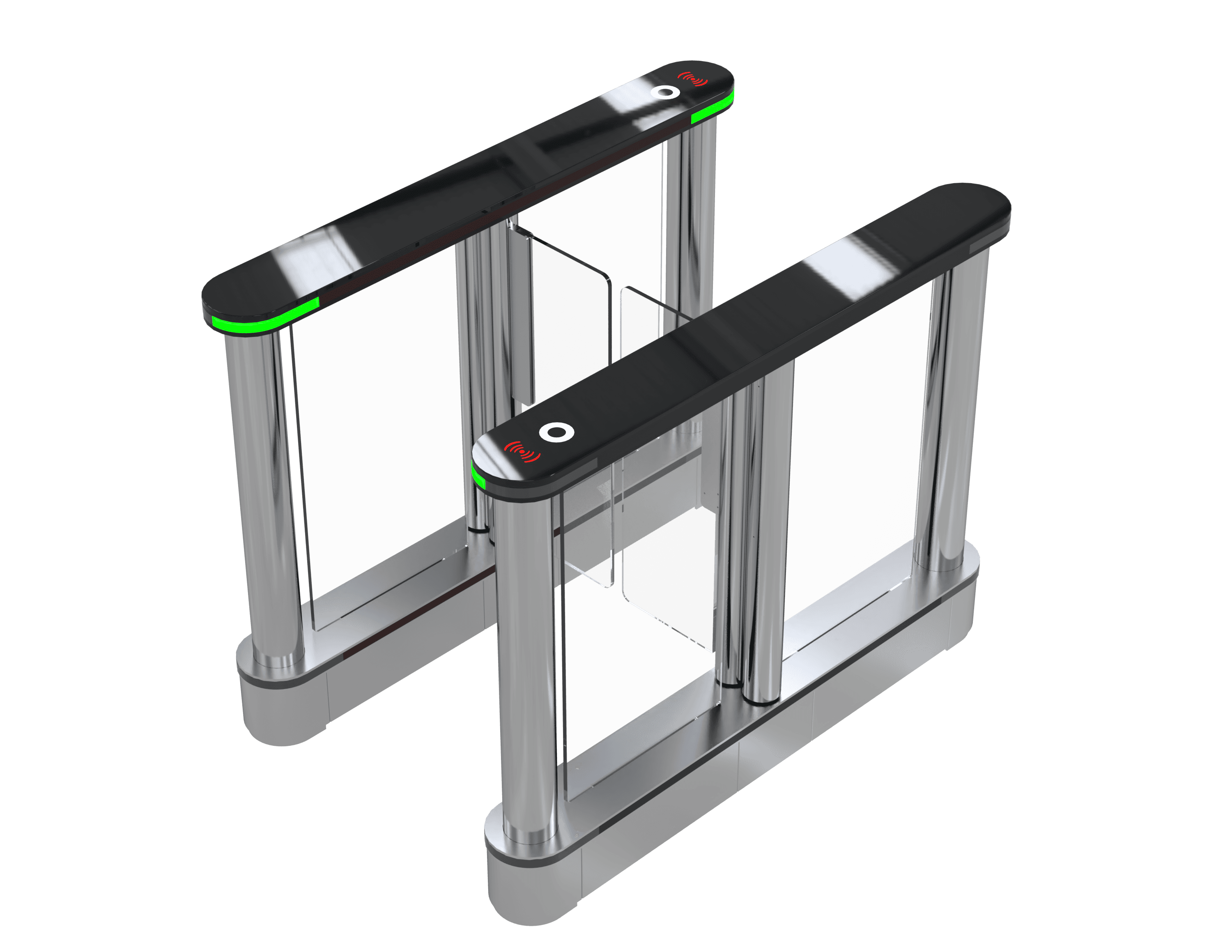

Glide Wide
Loop LS 170The wide, accessible swing-glass lane.

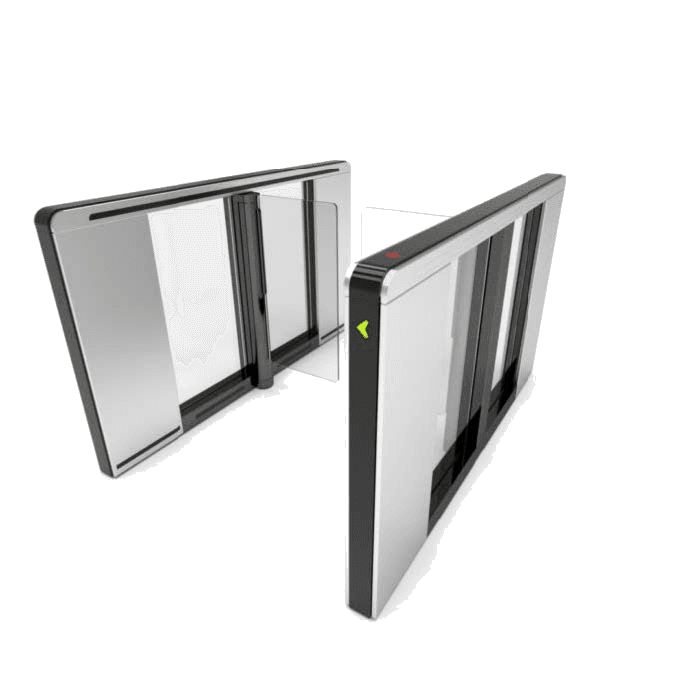

Lumen Edge
Vision EdgeThe architectural flagship: maximum safety and sightlines.

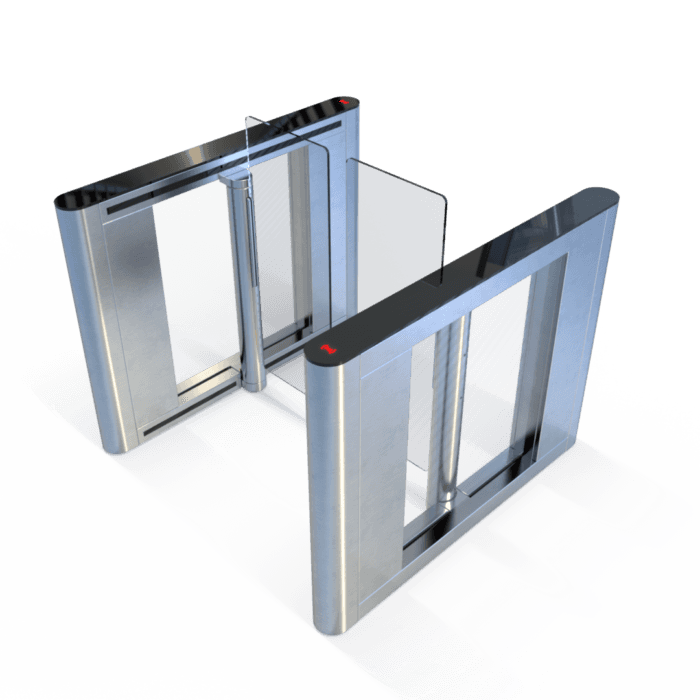

Lumen Air
Vision TouchPremium swing-glass in the slimmest footprint.

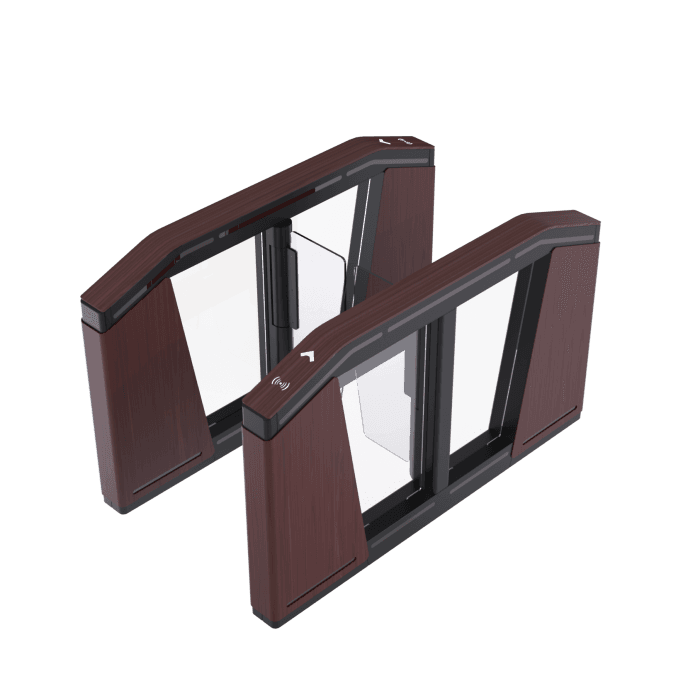

Lumen Studio
Vision BespokeThe flagship platform, finished to your brand.
Trusted by industry leaders
Installations
See them in action
Real deployments. Scroll to rotate the ring. Each card is an installation we'd be happy to walk you through.

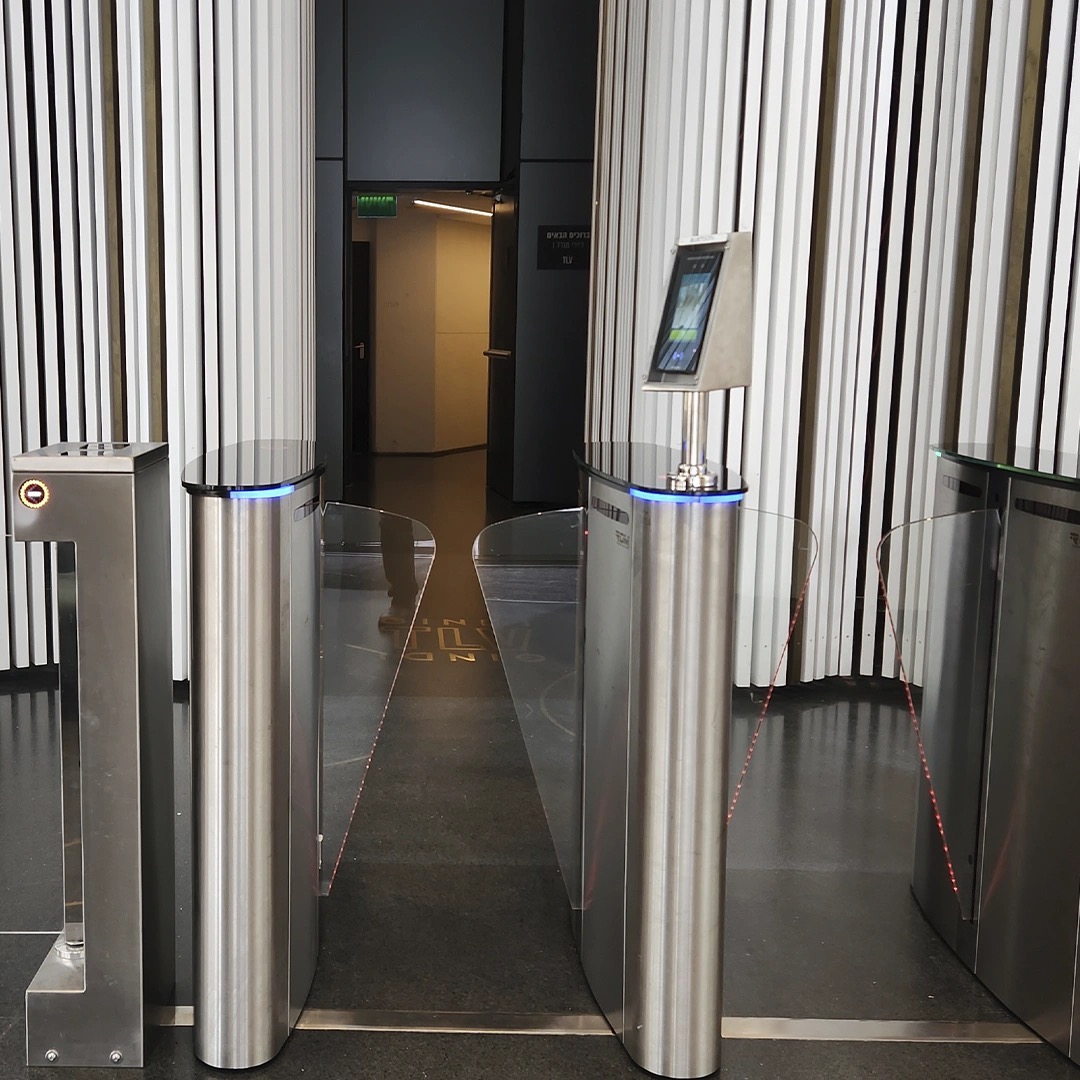

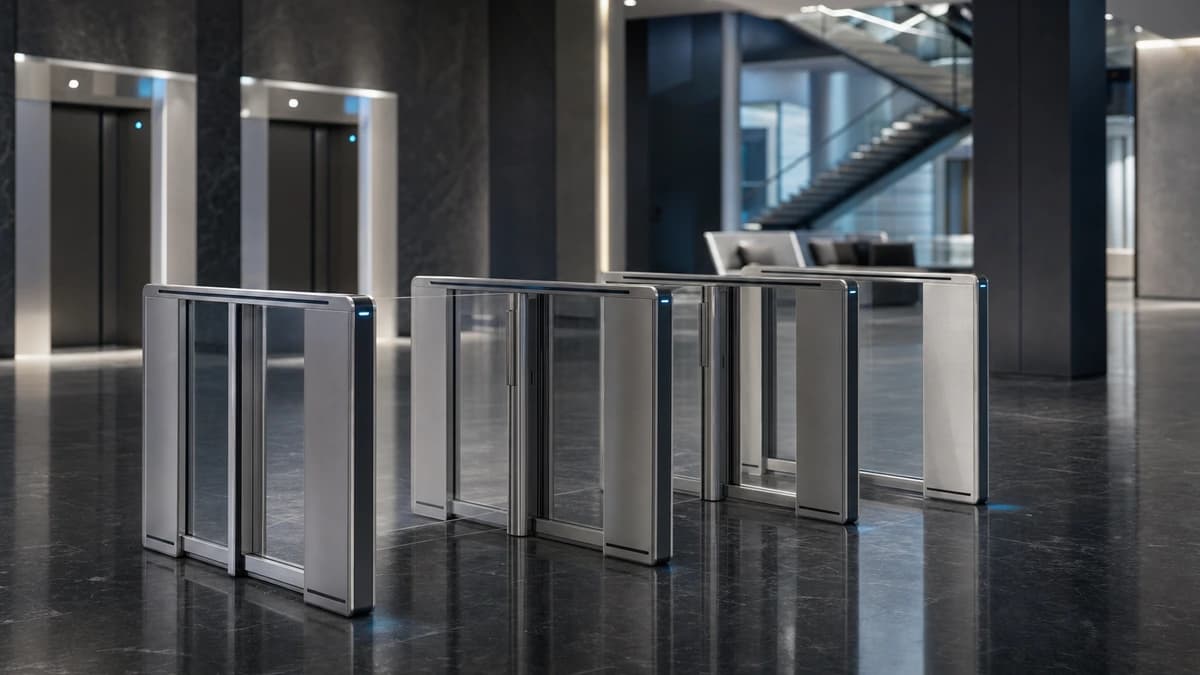

Class A office lobby
Manhattan, NY

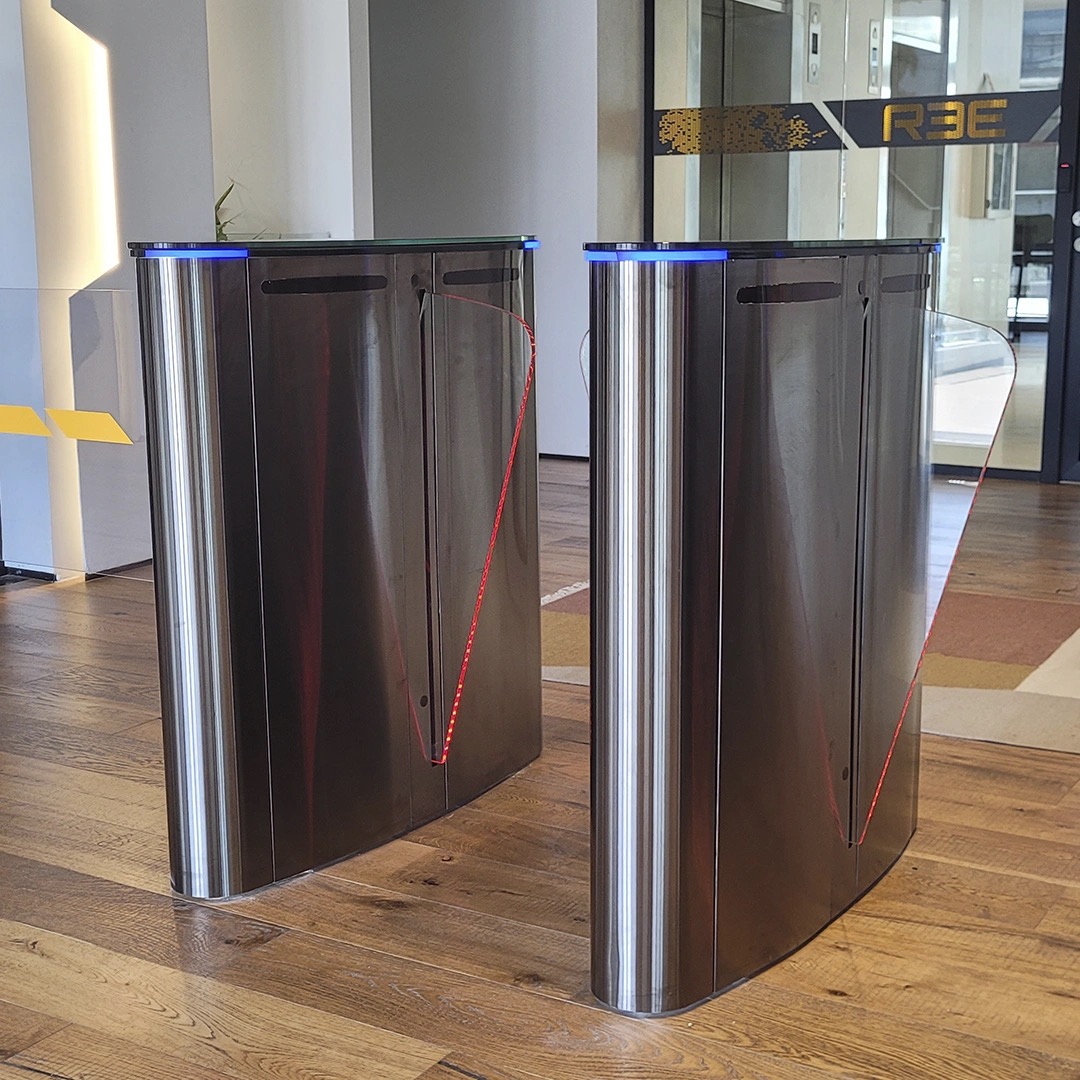

Tech HQ entrance
Brooklyn, NY

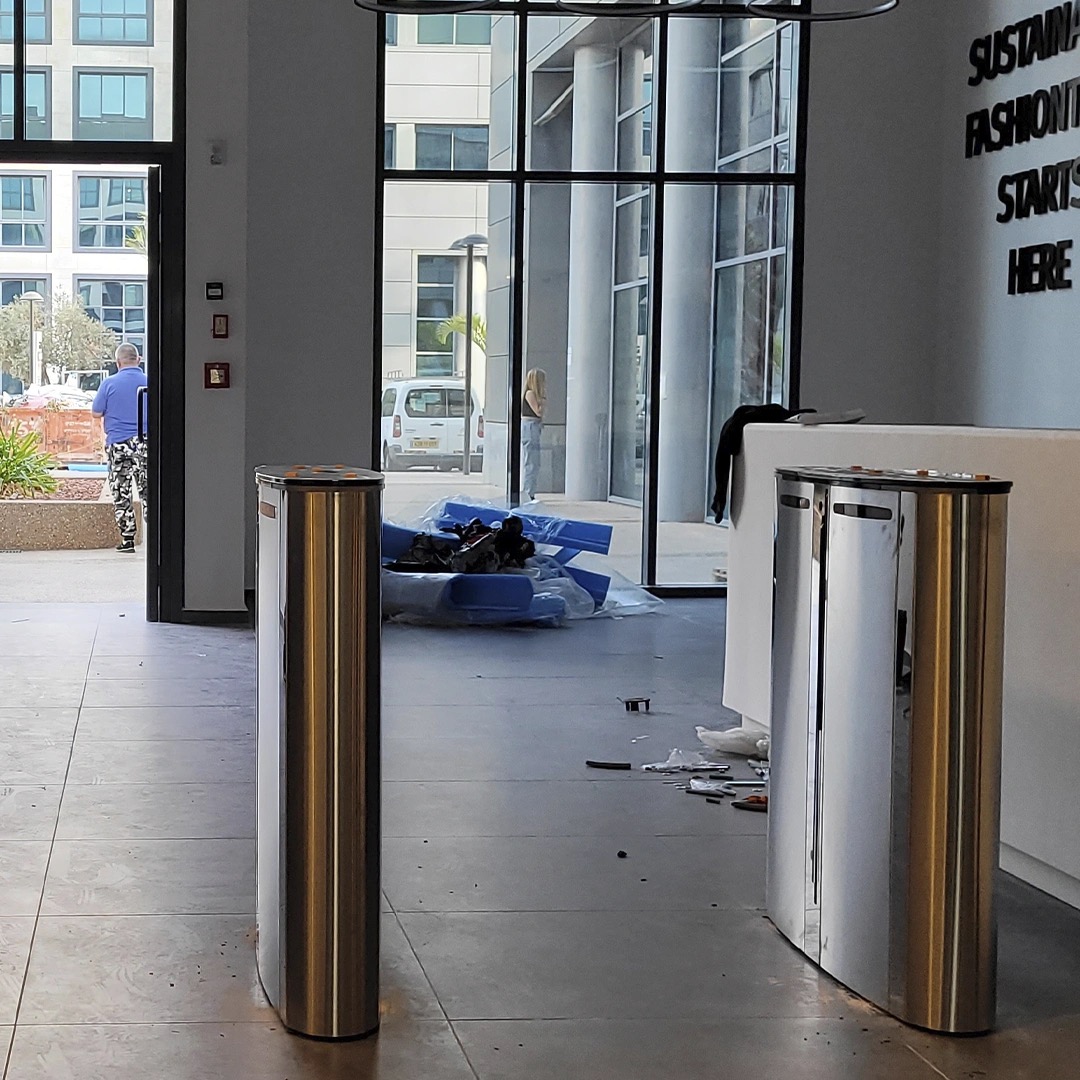

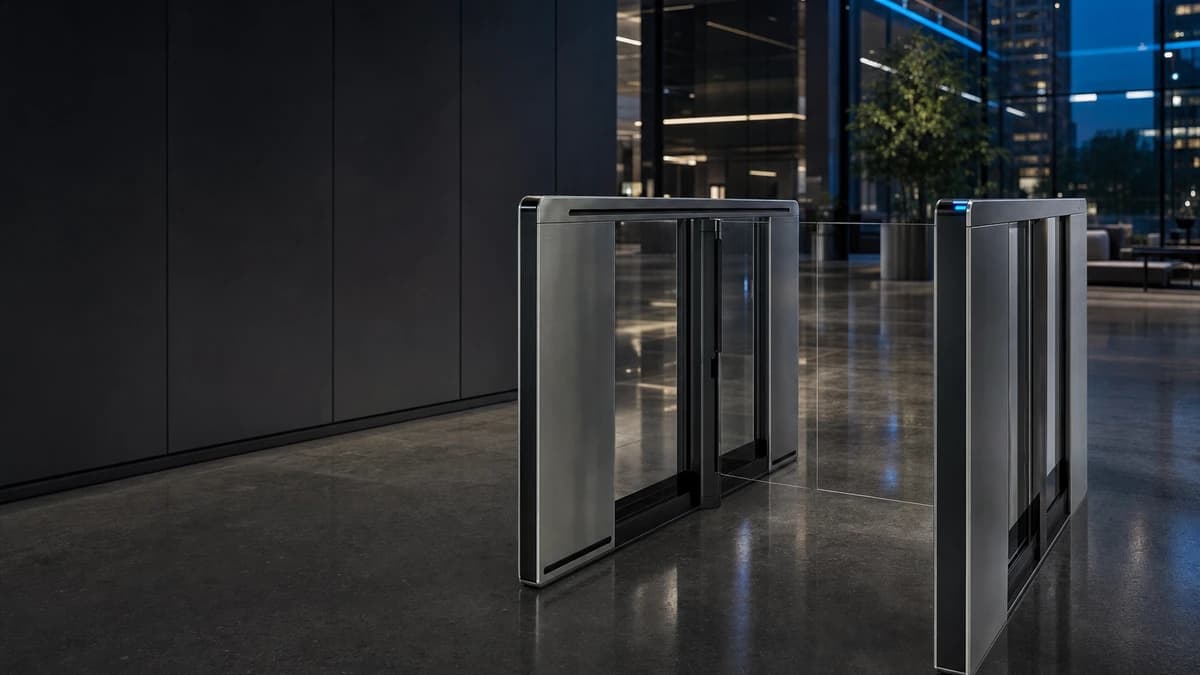

Financial services HQ
Boston, MA

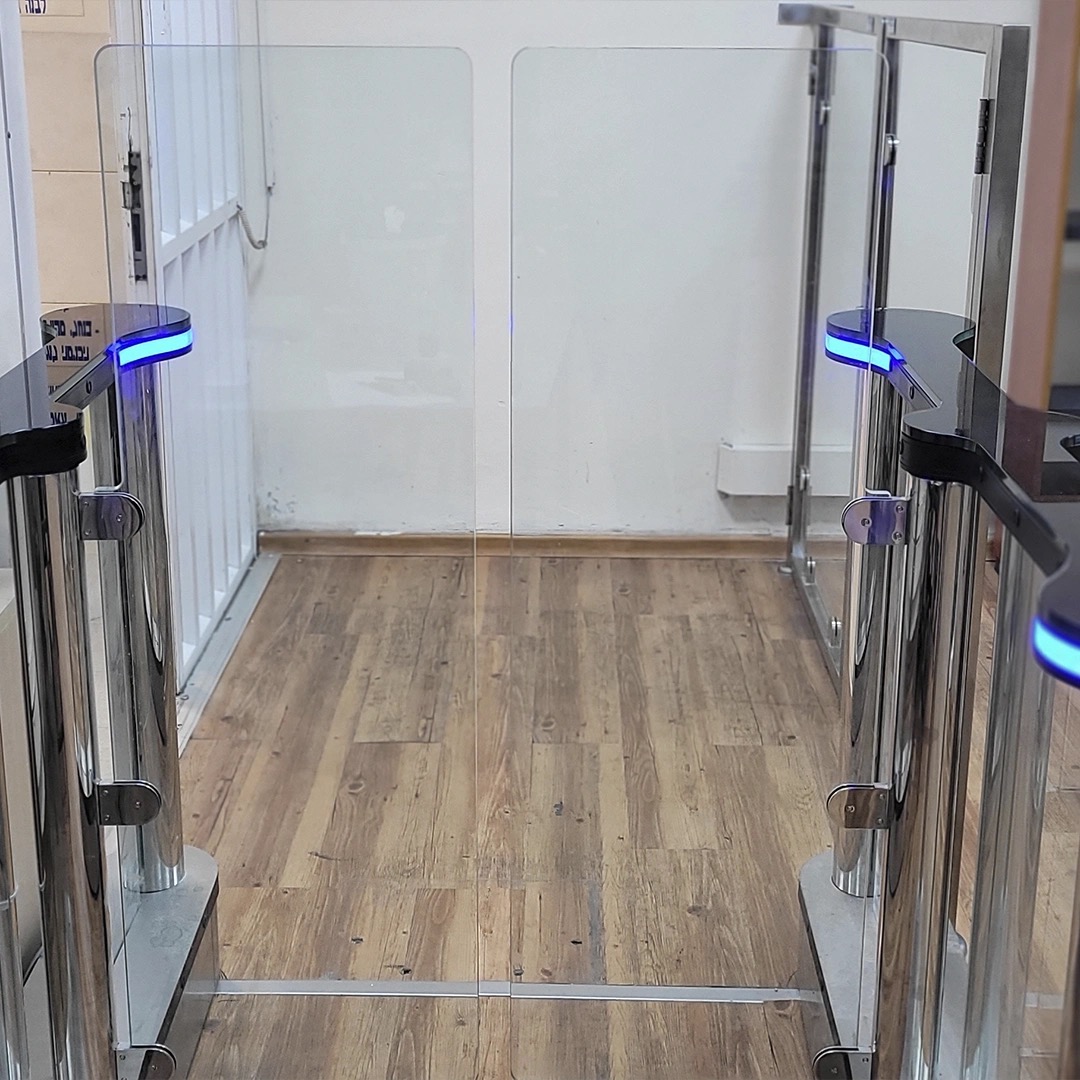

Mixed-use tower
Jersey City, NJ

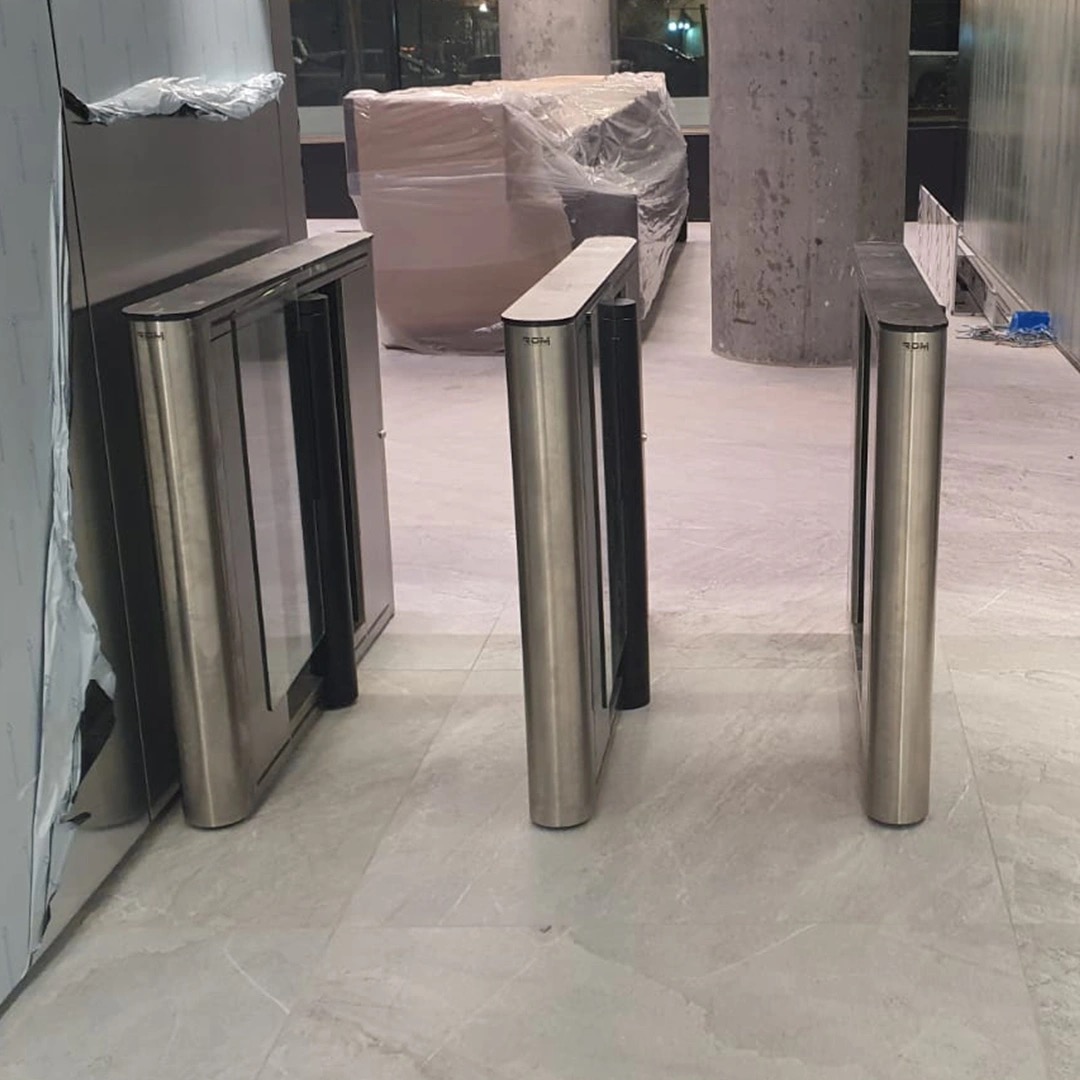

Law firm reception
Washington, DC

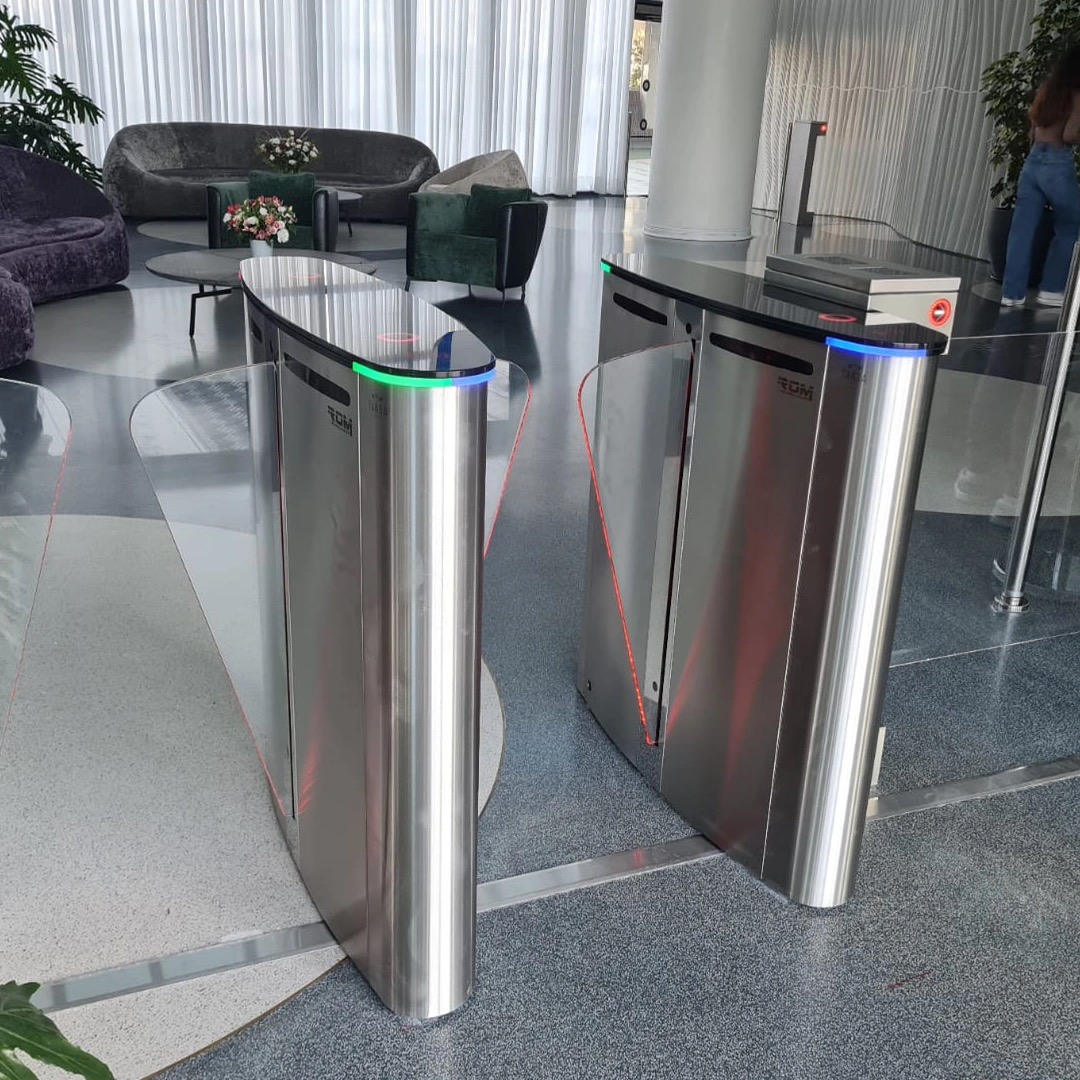

Media campus lobby
Manhattan, NY

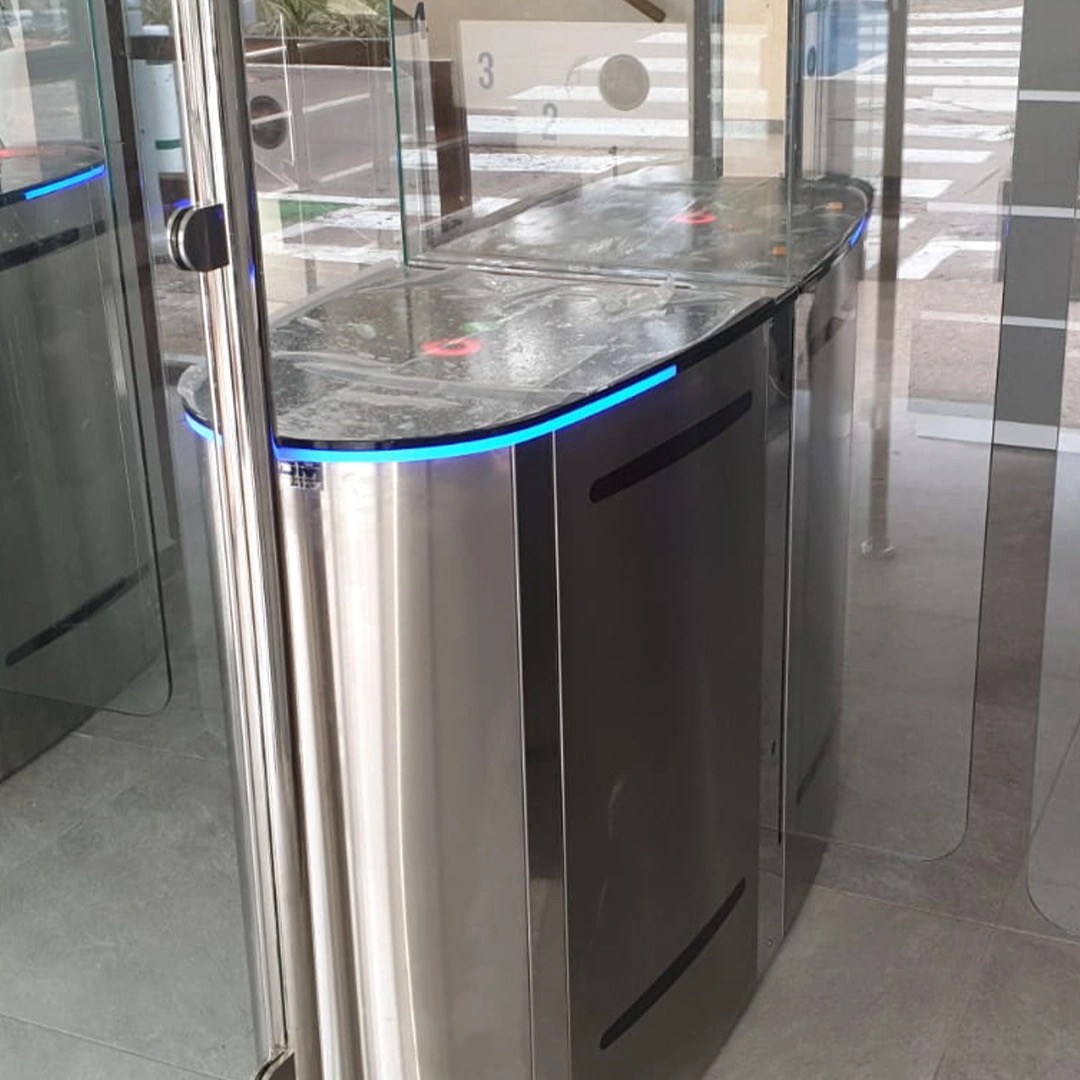

University library
Cambridge, MA

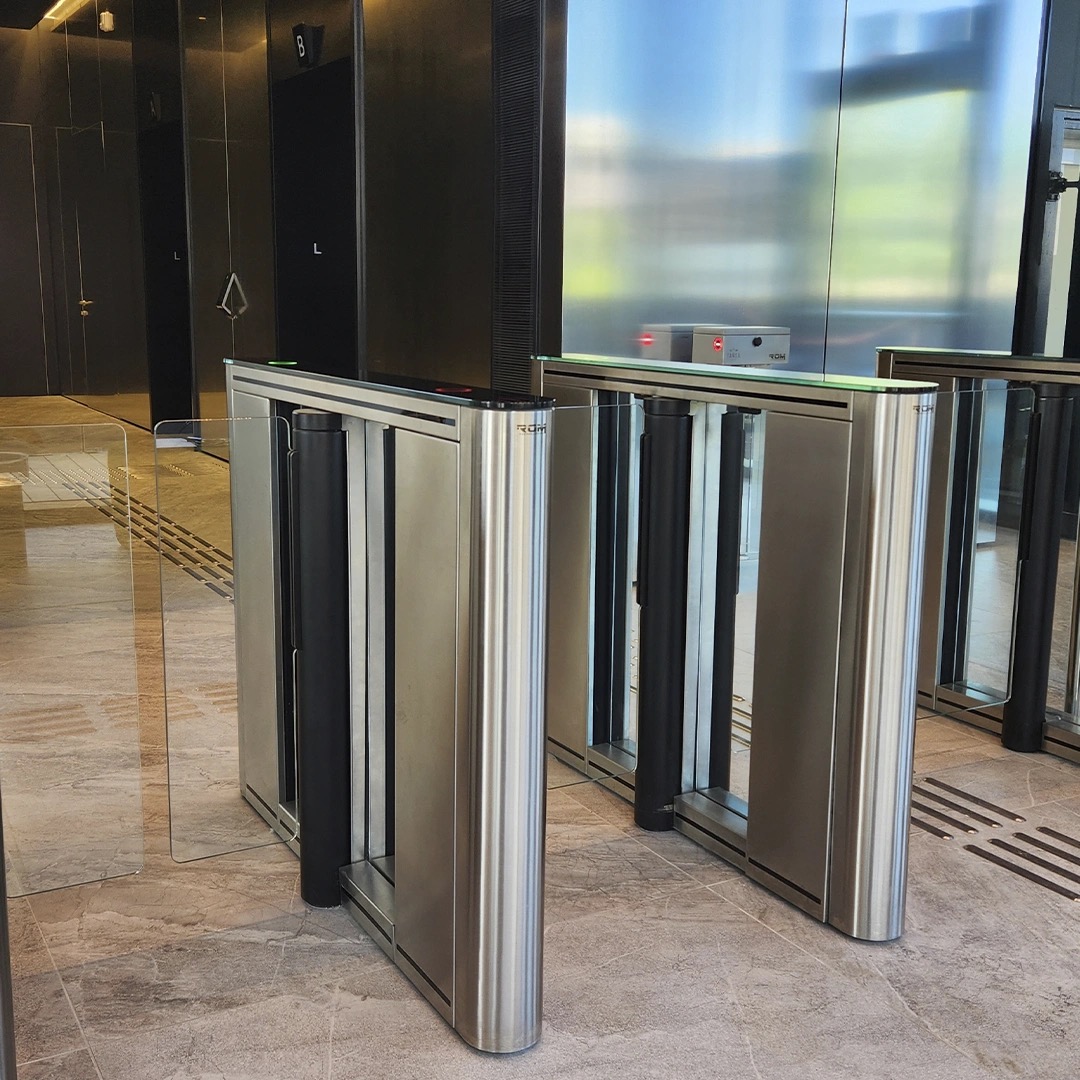

Trading floor entry
Manhattan, NY
Specifications
Technical details
dimensions
- Lane Width
- 500–915 mm
- ADA / Wide Lane
- 900–915 mm
- Glass Leaf Height
- up to 1800 mm
- Glass
- 10 mm tempered
performance
- Throughput
- ~60 / min
- Open/Close
- 0.5–1.5 s
- Drive
- 24V BLDC motor
- Power
- 100–240 VAC
security
- Security Level
- Deterrent
- Safety Sensors
- Up to 24 optical
- Direction
- Bi-directional
- IP Rating
- IP44–IP54
integration
- Serial
- RS-485, RS-232
- Bus / Network
- CAN bus, TCP/IP
- Chassis
- AISI 304 stainless
- Readers
- RFID, Mobile, Bio
Speed gate FAQs
Speed gates use infrared sensors and motorized glass panels instead of mechanical arms. They're faster (up to 60 passages per minute on select models vs 25/min), quieter, more aesthetic, and include advanced anti-tailgating. Ideal for corporate lobbies where appearance and throughput matter.
Standard lane footprint is 22" wide × 59" long; ADA lanes are 36"+ wide × 59" long. We deliver site templates with mounting points and electrical requirements 4 weeks before install so your GC can pre-cut flooring, run conduit, and pour structural blocking before the hardware lands.
Brushless drive runs under 45 dB(A) at 1m, quieter than a typical refrigerator. Mechanical-arm turnstiles clack at 70+ dB; in a busy lobby that's the difference between a calm entry experience and a constant clatter.
Ready to upgrade your entrance?
Get detailed pricing for your speed gate project within 24 hours. Custom configurations, ROI analysis, and integration recommendations included.
No commitment · 24hr response · (347) 681-1761
