ADA swing gates that pair with any of our lanes
Wide-passage swing barriers for wheelchair users, large carts, deliveries, and emergency egress. Pair one with a row of speed gates or tripods for an accessible, code-friendly lobby.
Features
Why facilities choose our swing gates
Wide, ADA-Ready Passage
60–100 cm passage widths, including 80–100 cm ADA-ready lanes for wheelchairs, mobility devices, strollers, deliveries, and luggage.
Fail-Safe Auto-Open Egress
On power loss or fire-alarm activation, the wing opens automatically in either direction for free, code-compliant egress. Configurable fail-safe operation.
Glass, Aluminum or Stainless Wings
Choose a 10mm plexiglass wing, an aluminum frame with glass infill, a full AISI 304 stainless wing, or an LED-illuminated leaf on a polished round column.
Pairs with Speed Gate Arrays
Shares finishes, control wiring, and design language with our speed gates: the accessible lane beside a Lumen or Cadence array for a cohesive lobby.
Soft, Motorized Operation
Bi-directional motorized wing with soft-stop at lock points, automatic closing, and audio warnings: ~1.5 s open/close at just 9 W standby.
Built for Demanding Settings
AISI 304 stainless framing (316 optional), with a fully stainless wing option for high-wear and wash-down areas. Touch-free motorized operation reduces contact points.
The lineup
Four motorized swing gates
Glass, aluminum-framed, all-stainless, or LED-lit on a round column. Pick the wing and post that fit your lane, from accessible 80–100 cm openings to premium lobby statements. Every model is motorized, soft-stop, and fail-safe.

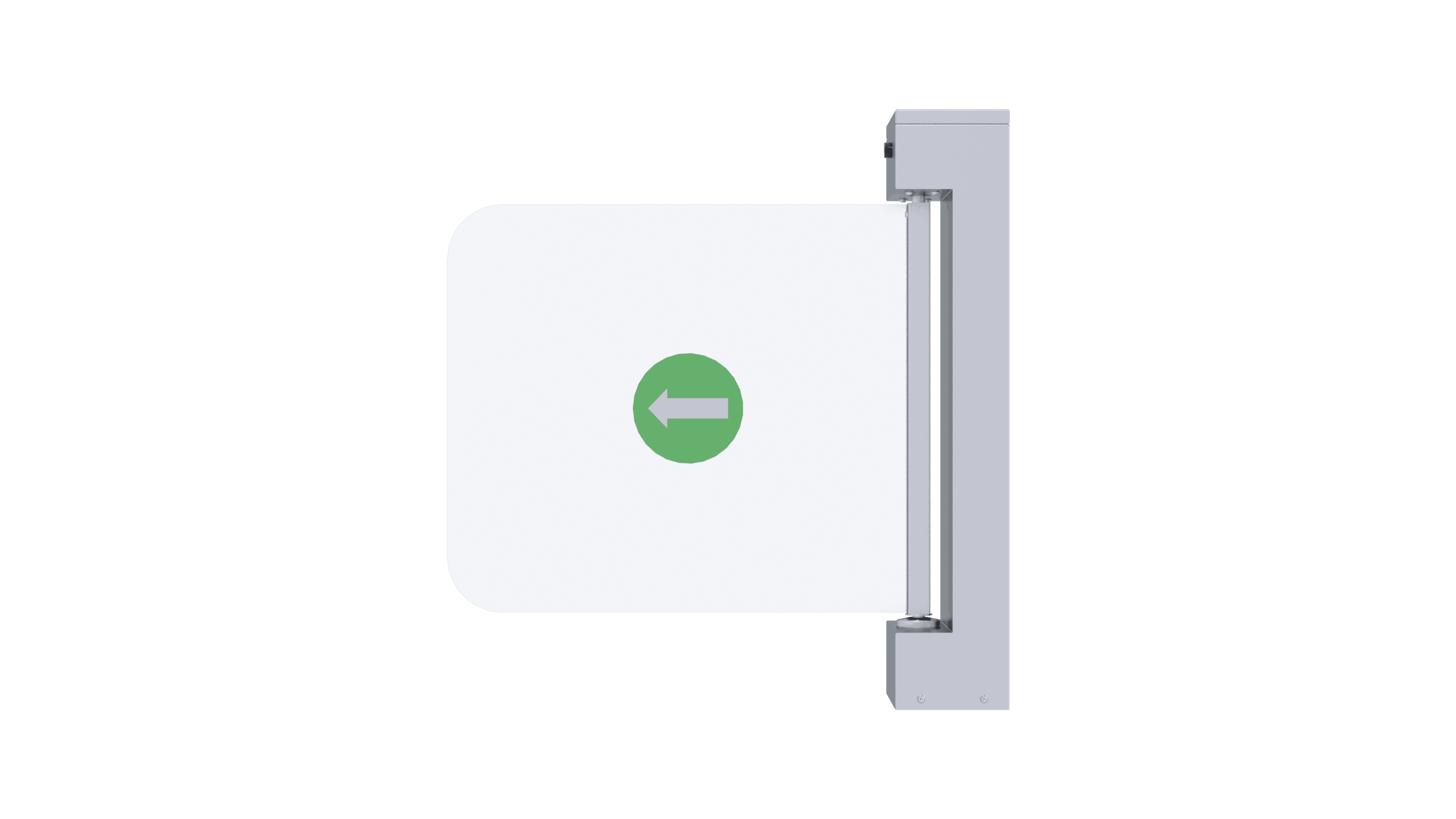

Vane
SG 112The essential motorized glass swing gate.

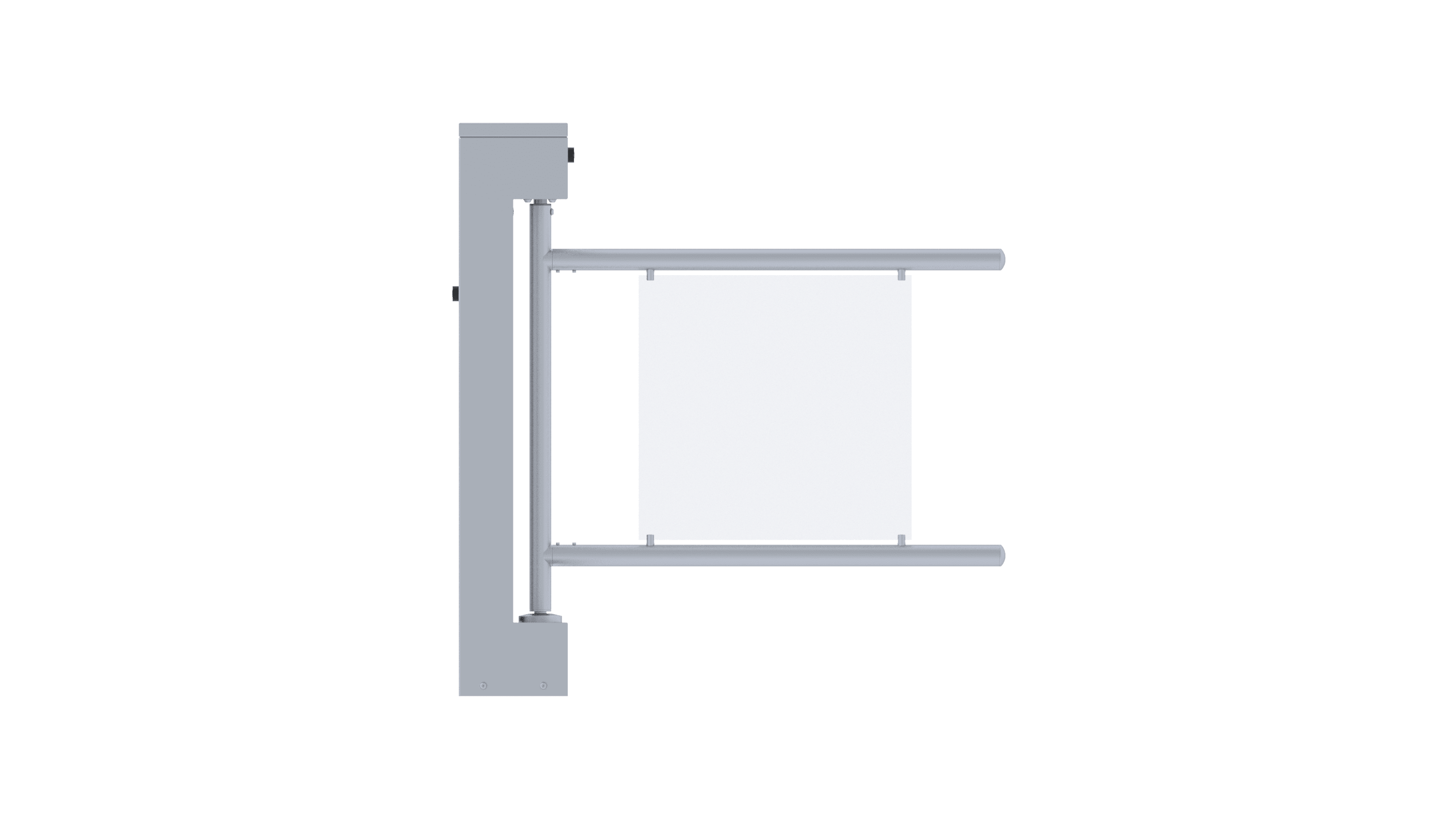

Rail
SG 212The wide, lightweight accessible lane.

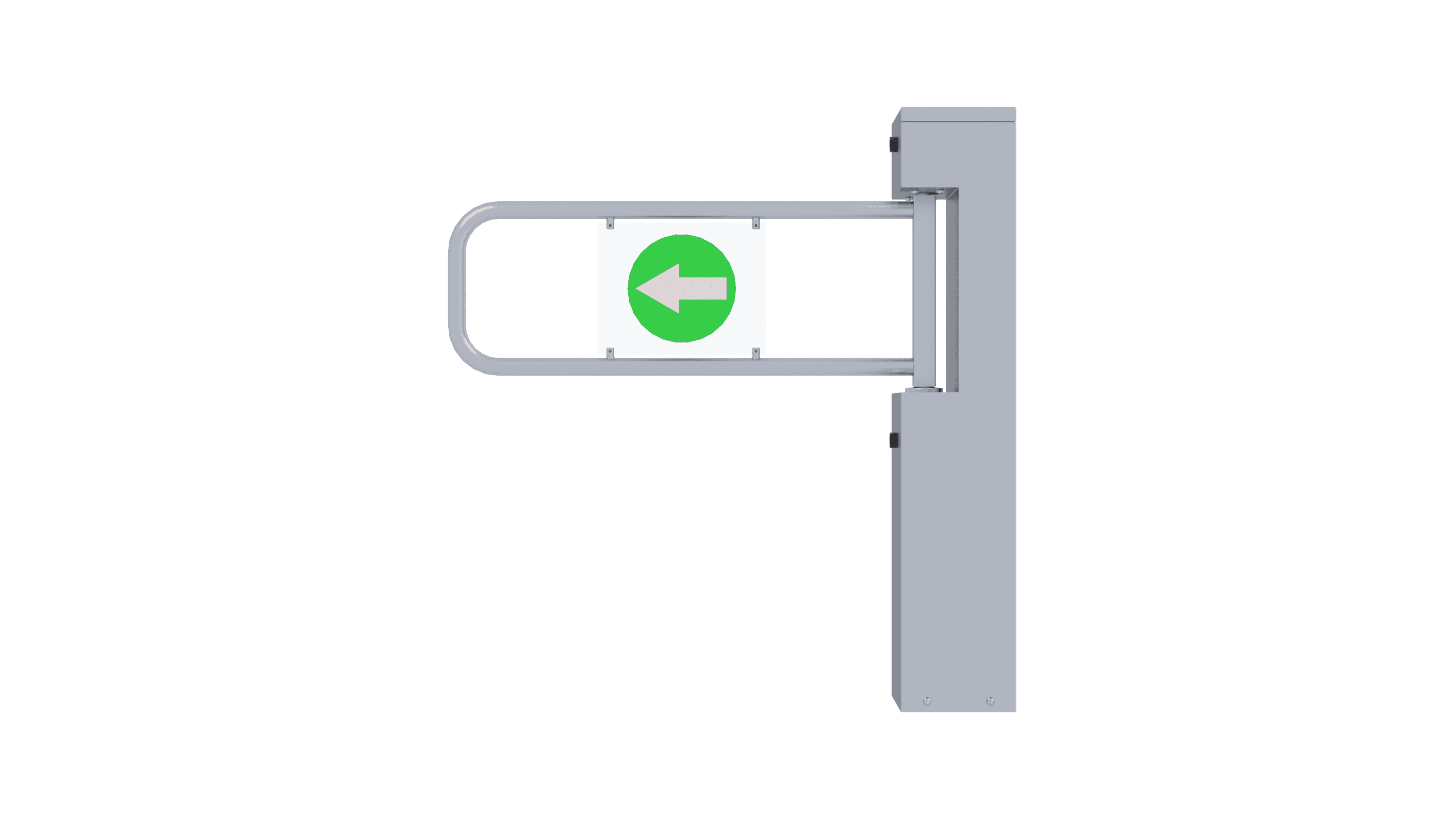

Forge
SG 312An all-stainless wing for high-wear settings.

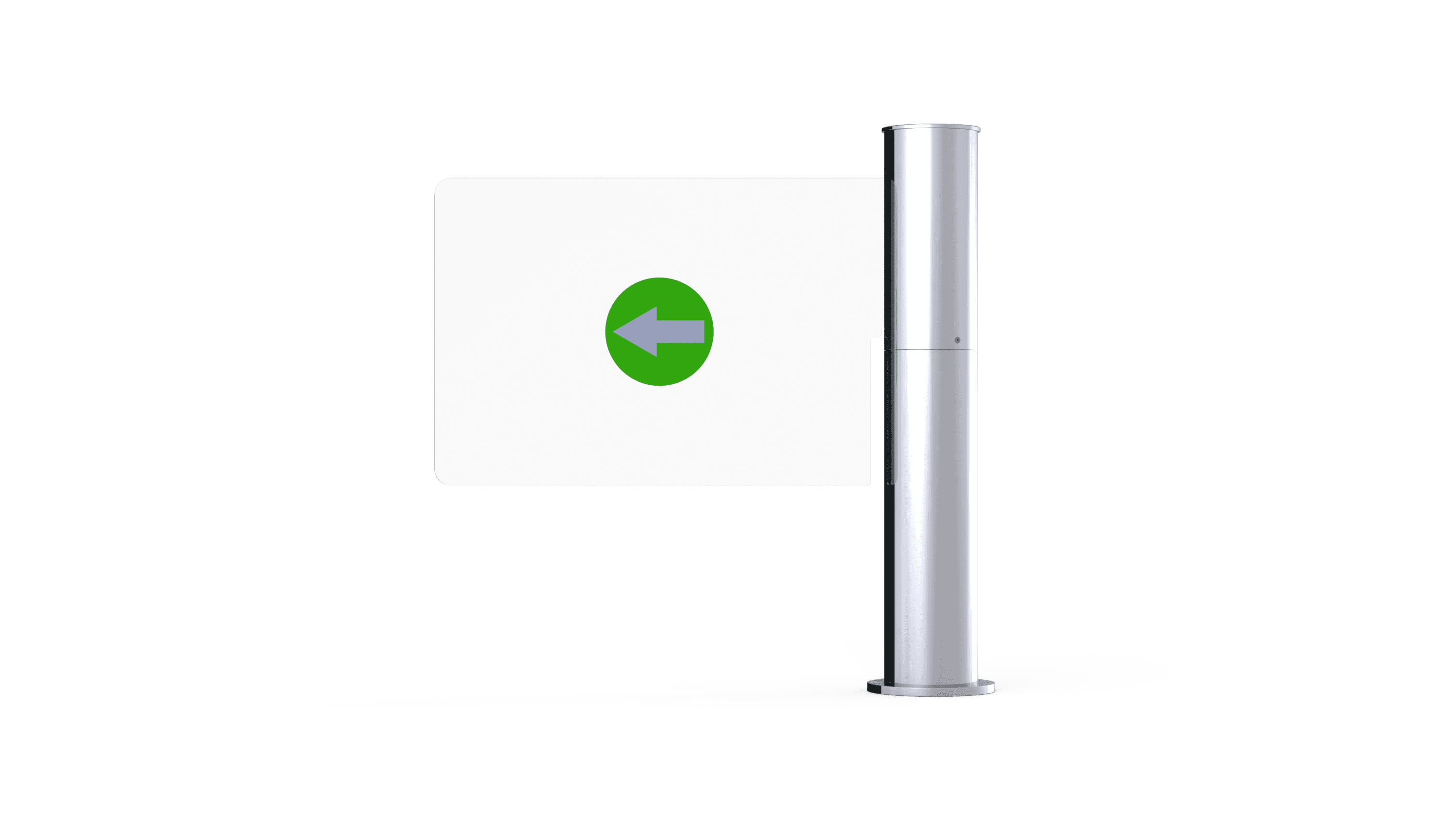

Halo
SG WMCThe premium, LED-lit swing gate.
Trusted by industry leaders
Installations
See them in action
Real deployments. Scroll to rotate the ring. Each card is an installation we'd be happy to walk you through.

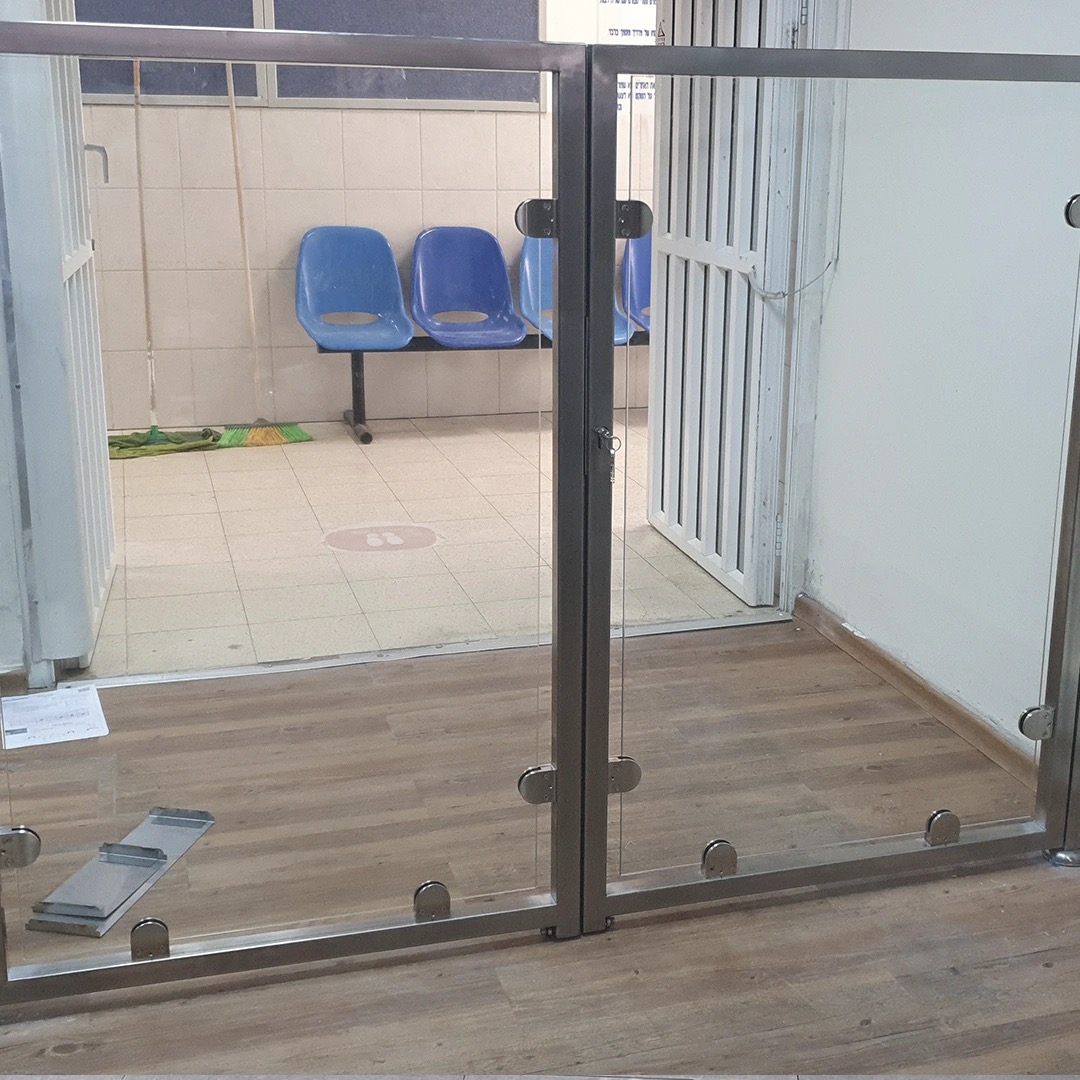

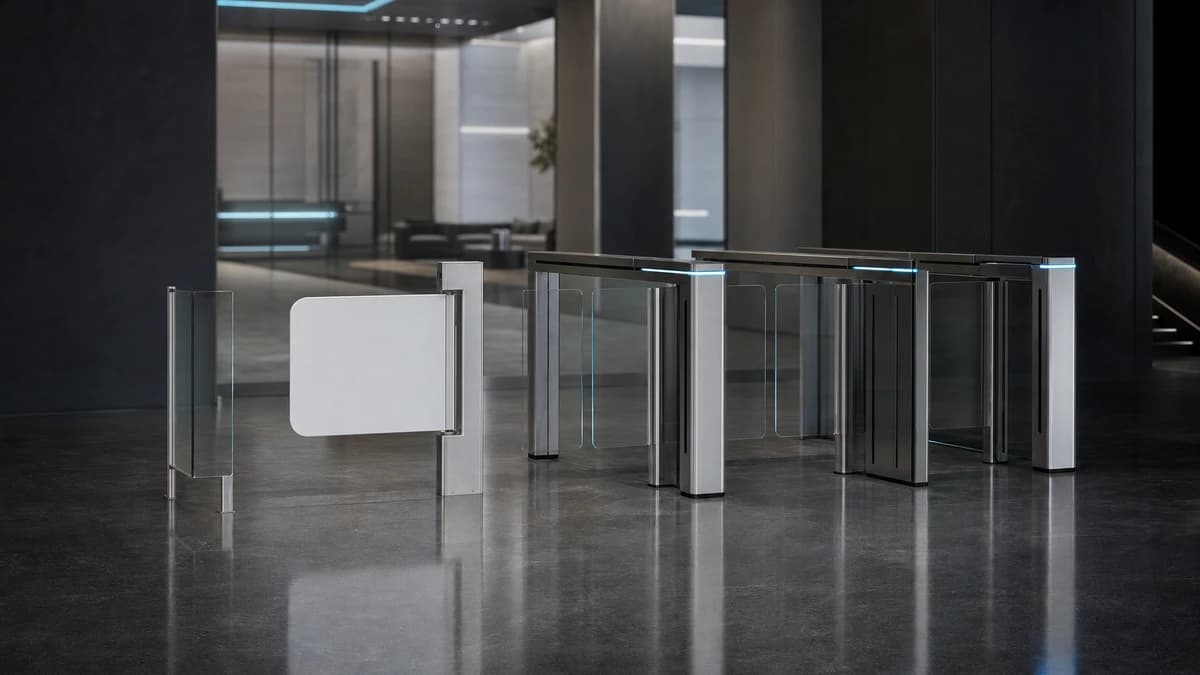

ADA-accessible lobby lane
Brooklyn, NY

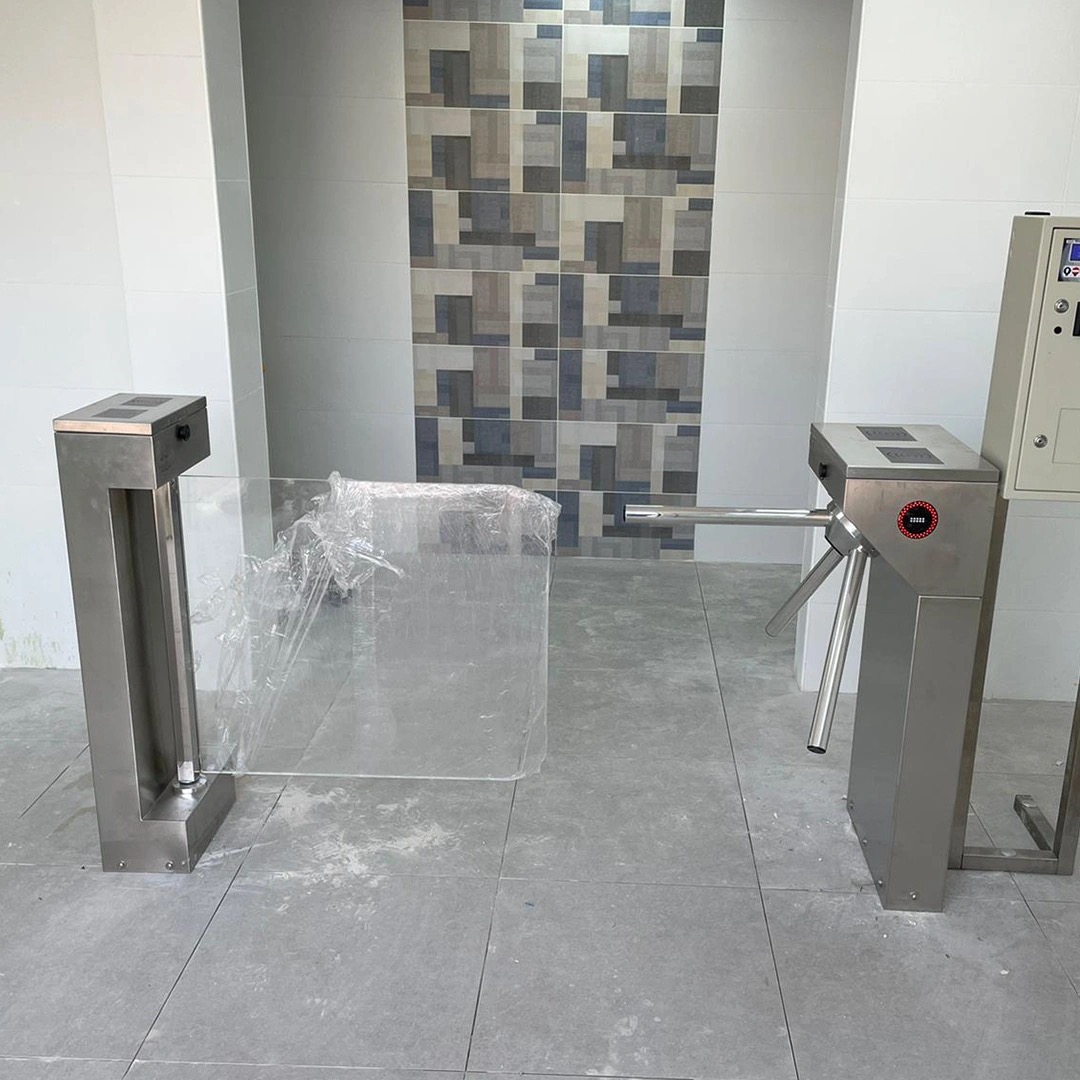

Mixed-use tower entrance
Jersey City, NJ

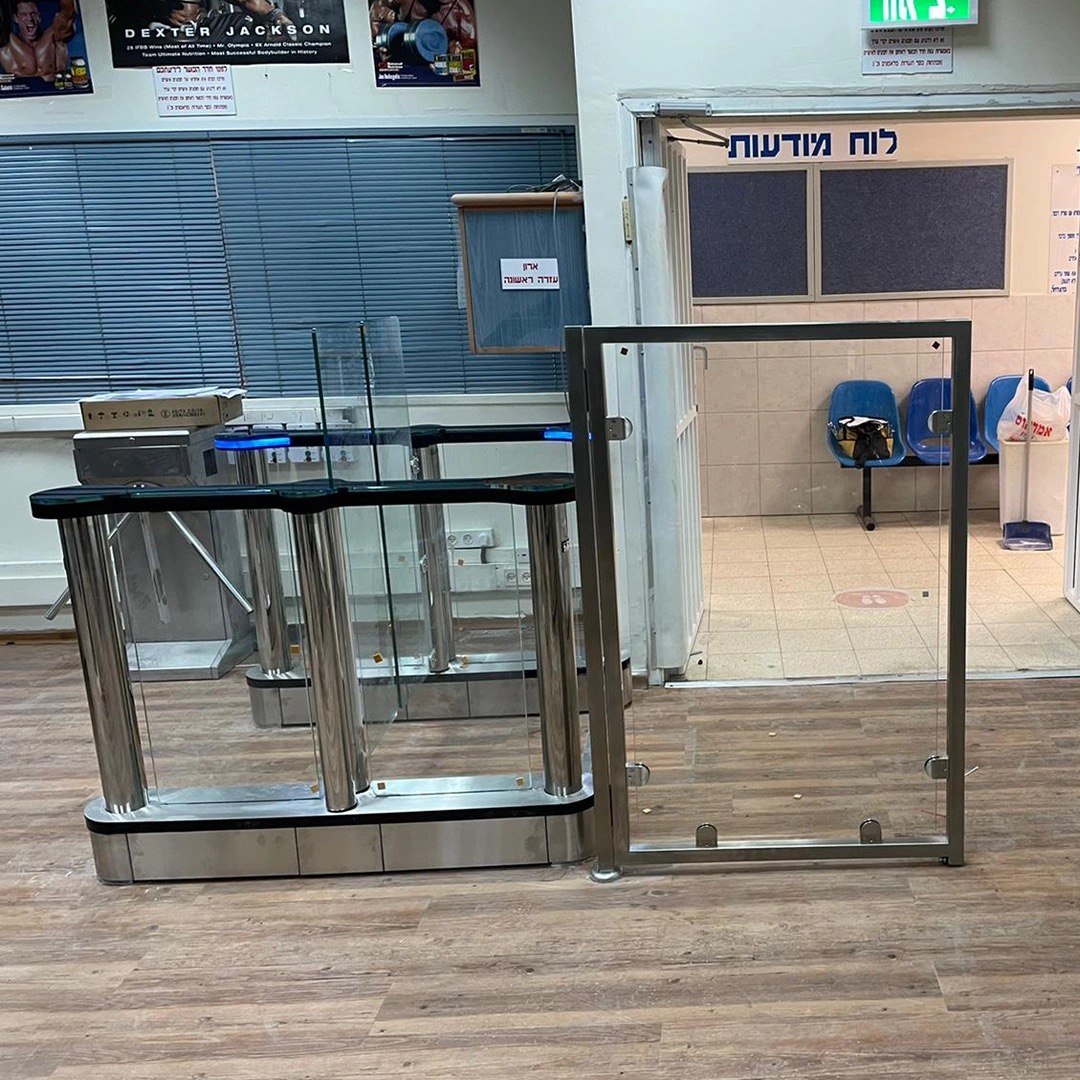

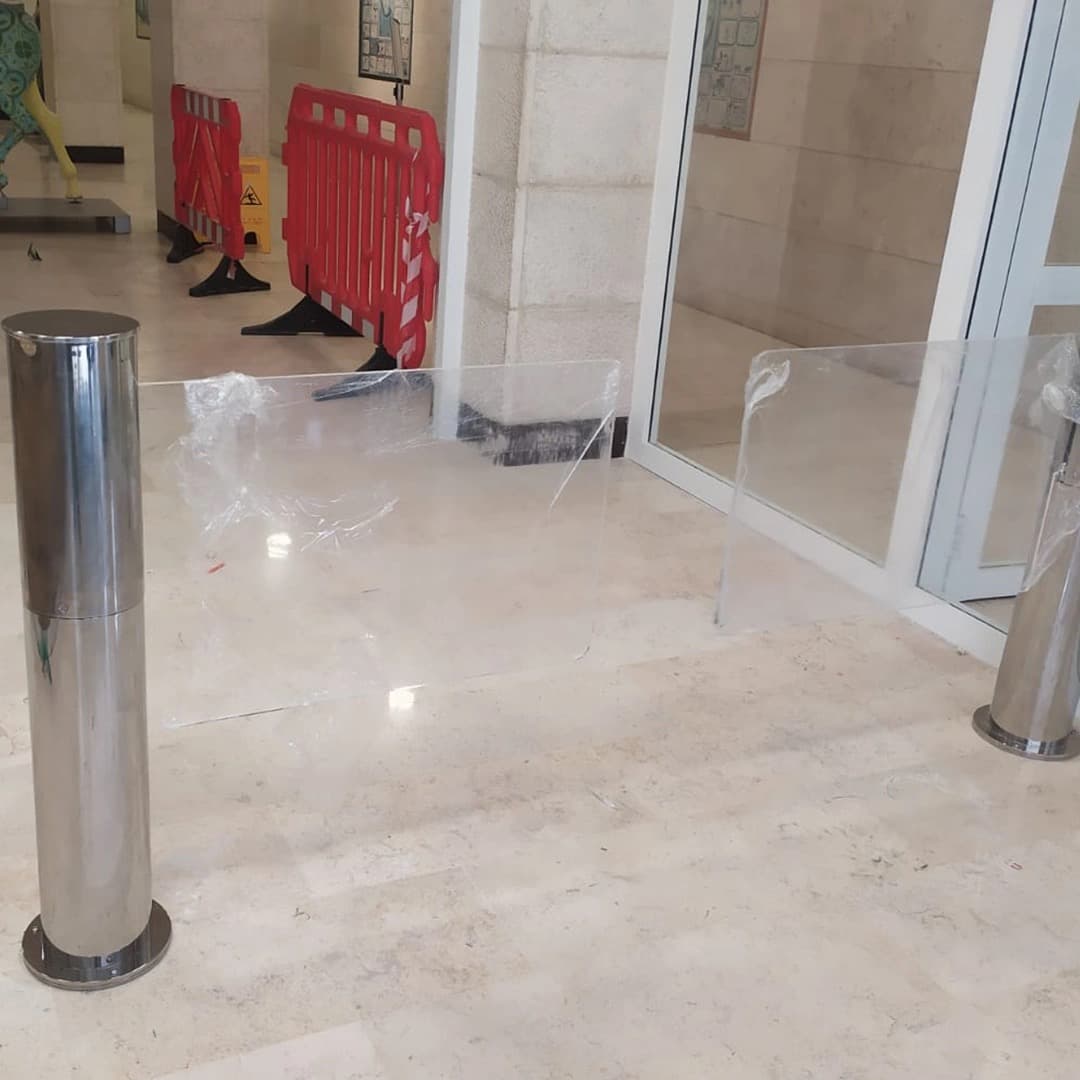

Hospital main entry
Manhattan, NY

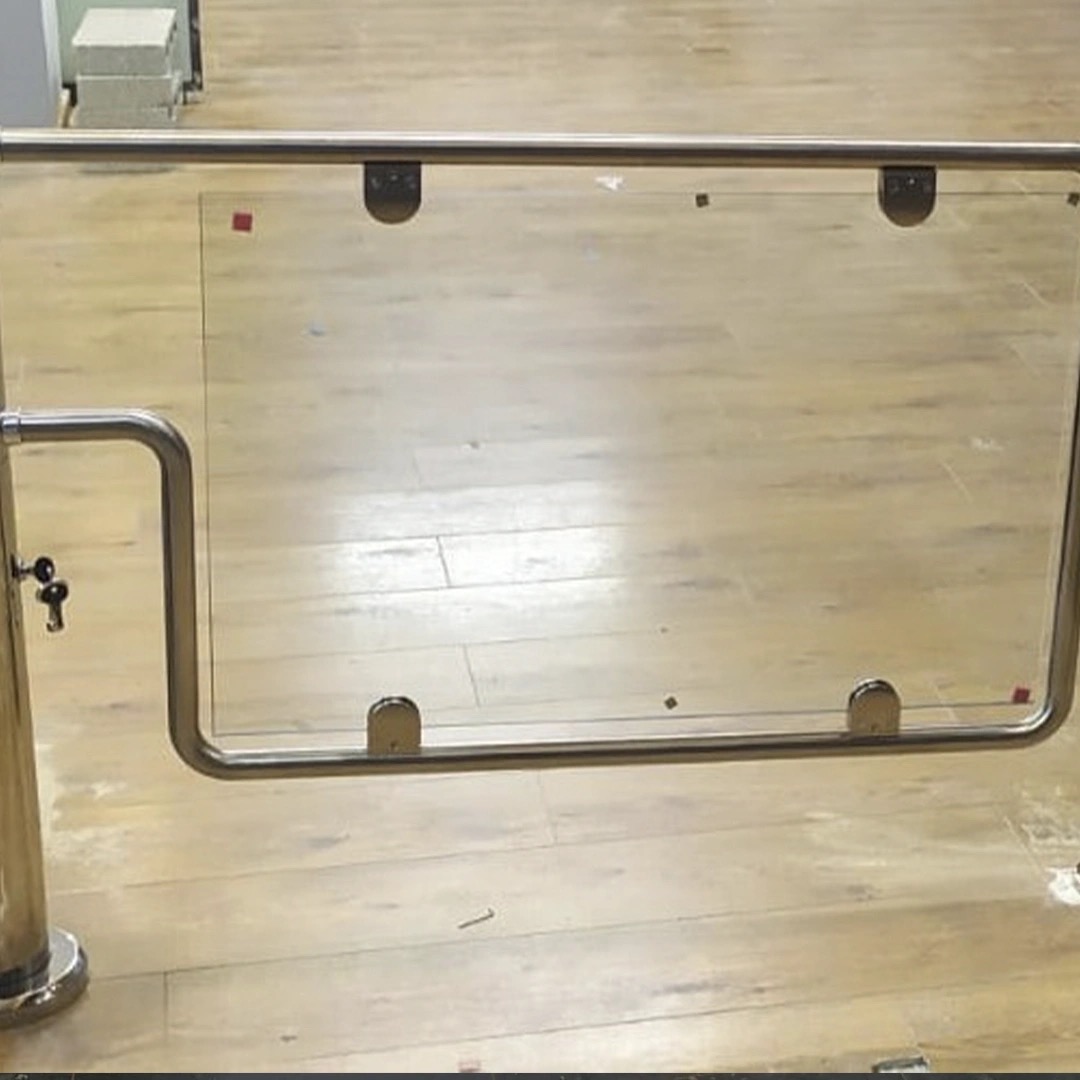

Conference center entry
Boston, MA

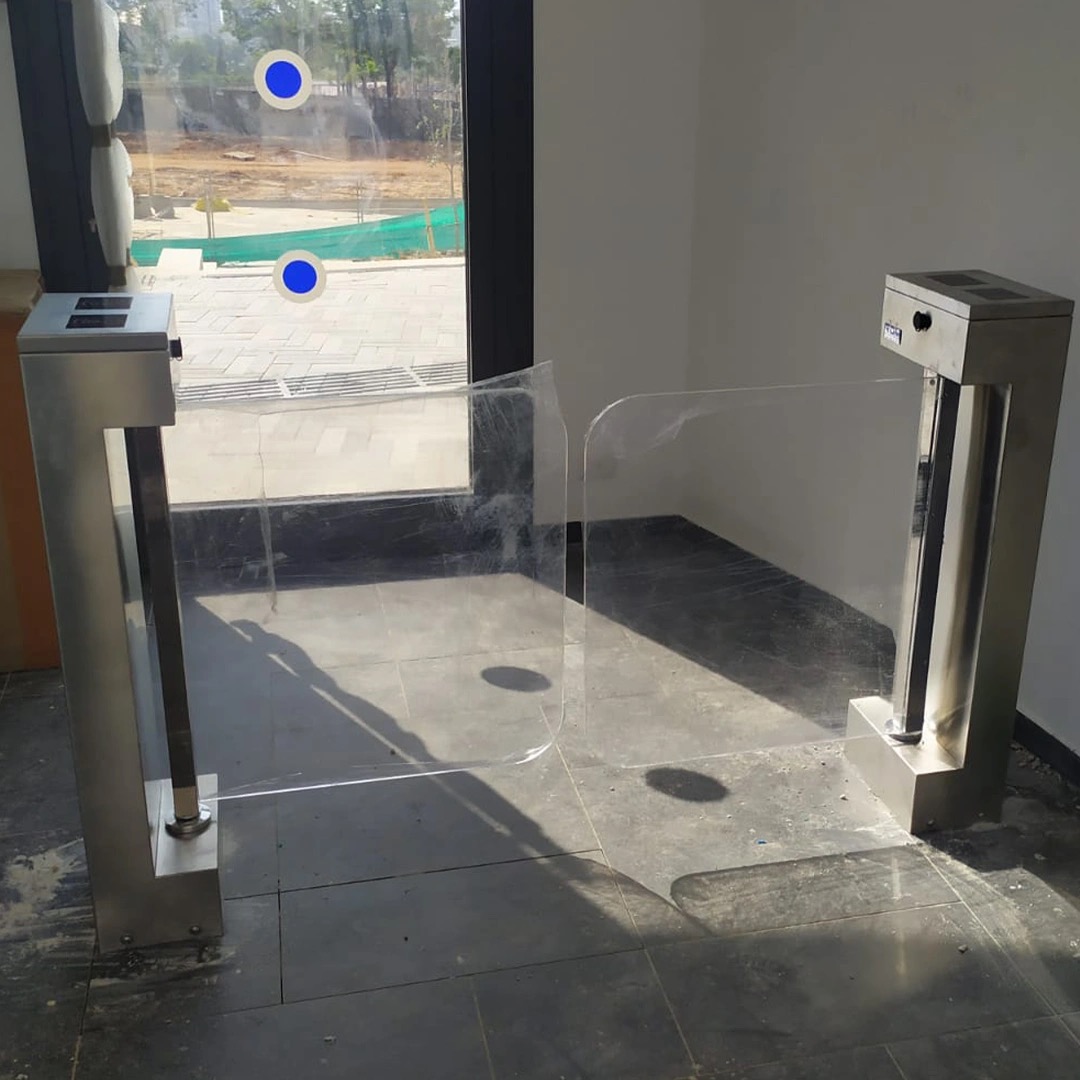

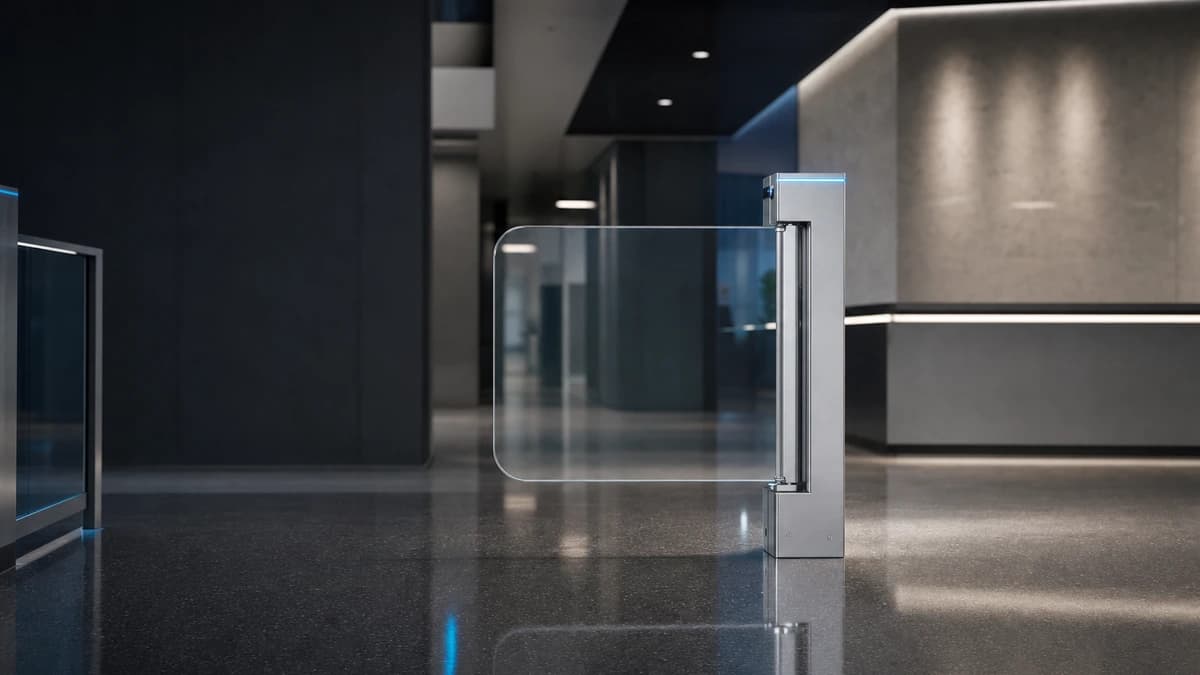

Museum visitor entrance
Manhattan, NY

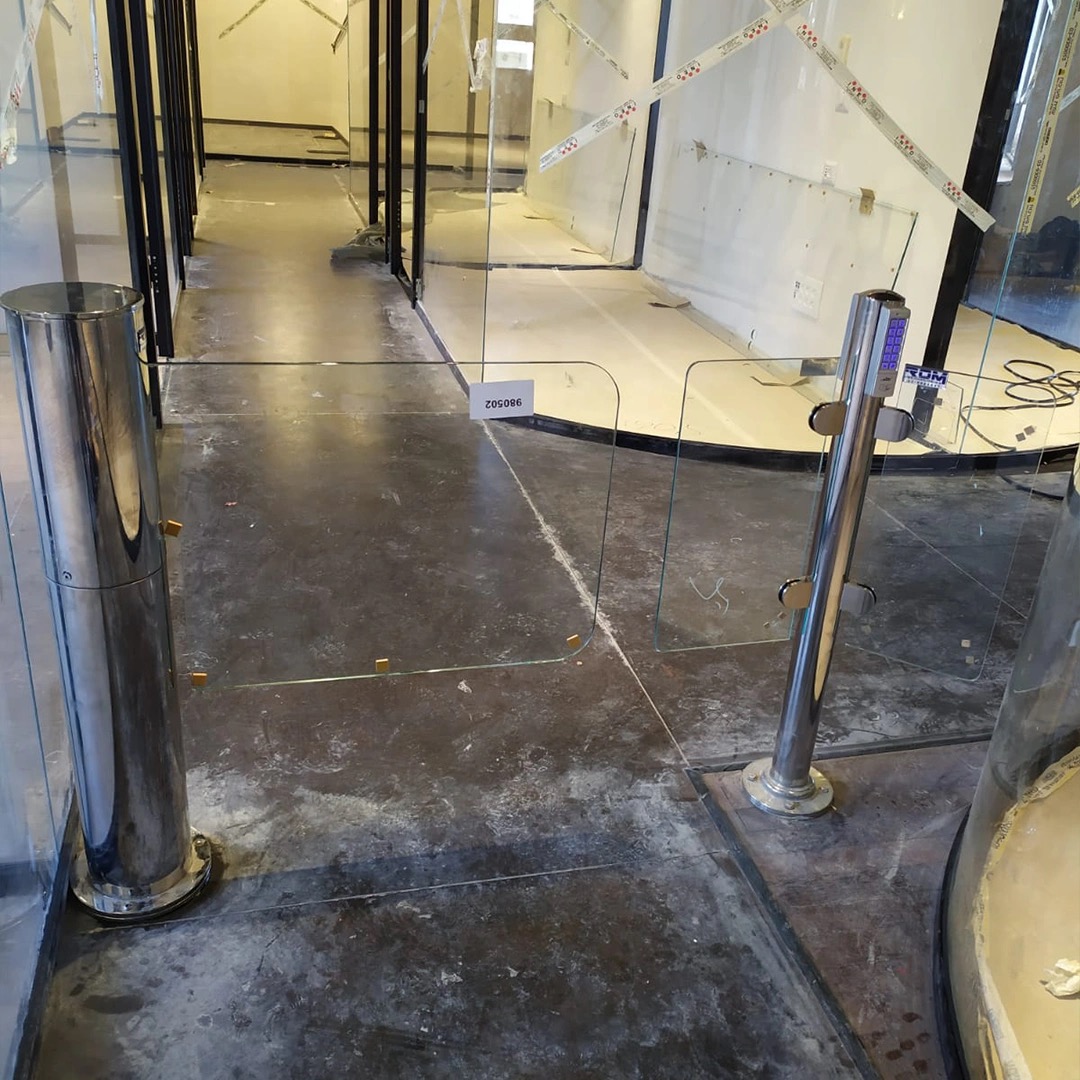

Government building lobby
Albany, NY

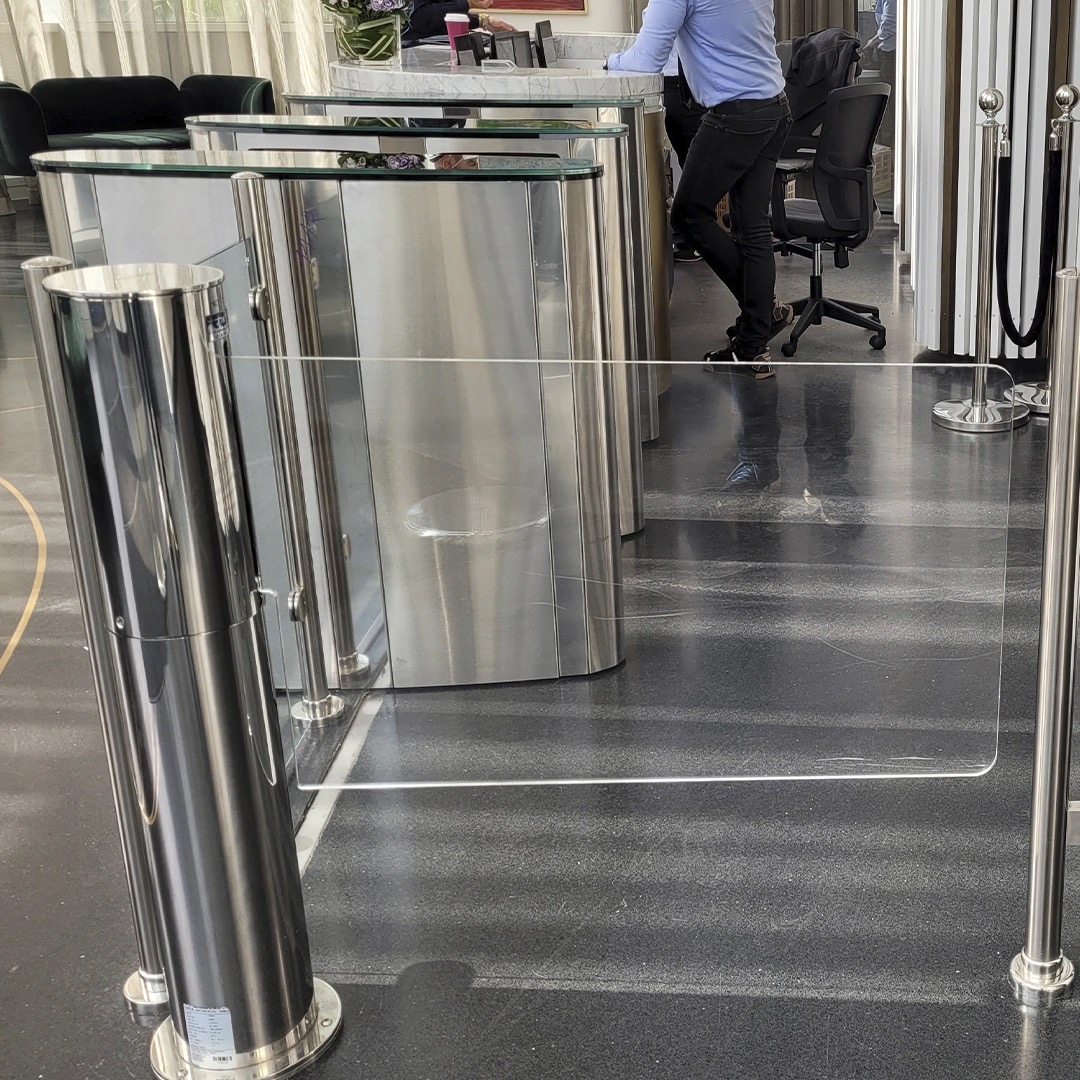

Class A office accessible lane
Manhattan, NY

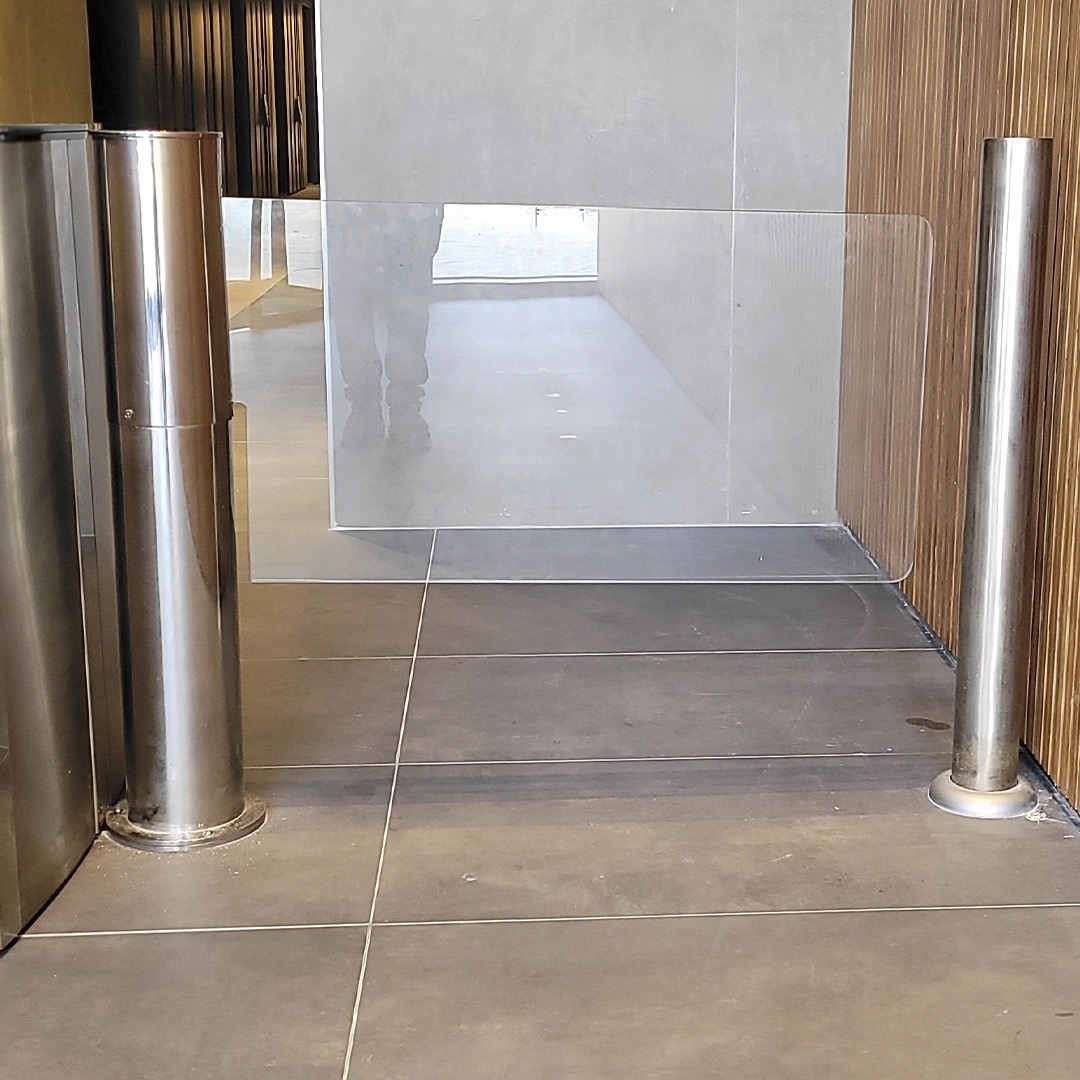

University admin building
New Haven, CT
Specifications
One platform, four wings
Every model runs the same motorized, fail-safe platform. What changes is the wing and post. The specs below apply across the range.
dimensions
- Passage Width
- 60–100 cm
- Glass Wing
- 10 mm plexiglass
- Framed Wing
- Alu + glass infill
- Steel Wing
- AISI 304 stainless
performance
- Operation
- Motorized bi-dir
- Open/Close
- ~1.5 s
- Standby Power
- 9 W
- Power
- 100–230 VAC
safety
- Emergency
- Auto-open egress
- Power Fail
- Fail-safe free pass
- Soft Stop
- At lock points
- Security Level
- Deterrent
build
- Frame
- AISI 304 (316 opt.)
- Weight
- 27–40 kg
- Control
- Reader-bracket ready
- Use
- Indoor
Swing gate FAQs
A swing gate is a motorized access control barrier with wide glass panels that swing open to allow passage. ADA-accessible configurations are available, providing 60-100 cm passage width for wheelchairs, mobility devices, deliveries, and luggage. Swing gates are typically paired with speed gate arrays to provide accessible lanes.
Gatestile swing gates offer ADA-accessible configurations with 60-100 cm passage width, low-force motorized operation, appropriate door timing, and visual/audible indicators. Contact us to discuss ADA-accessible options for your project.
Gatestile swing gates are fail-safe: on a power loss or fire-alarm signal, the wing automatically opens in either direction for free, unobstructed egress. Soft-stop operation and configurable fail-safe behavior keep evacuation routes compliant.
Ready for an accessible entrance?
Get detailed pricing for your swing gate project within 24 hours. ADA compliance review and integration recommendations included.
No commitment · 24hr response · (347) 681-1761
